Why is it called a Western Union splice?

Why is it called a Western Union splice?

The Western Union splice or Lineman splice is a method of joining electrical cable, developed in the nineteenth century during the introduction of the telegraph and named for the Western Union telegraph company. This method can be used where the cable may be subject to loading stress.

What is the meaning of Western Union Short tie splice?

Western union short tie.  A wire splice widely used or applied inside to building. Thissplice is applied only to small solid wire.

What is the other name for tap splice joint?

A Y splice joint, also known as a tap splice, connects a conductor to a running wire.

What is splice wire?

Cable or wire splicing is the process of connecting the endpoints of two or more cable conductors. During cable splicing, the wires of different length are joined together while their original characteristics remain the same.

What is wrapped tap?

Wrapped Tap or Tee Joint • This is used on large solid conductors where it is difficult to wrap the heavy tap wire around the main wire.

What are the different types of wire splicing?

There are three main types of electrical joints, also known as splices: The Western Union splice, the tap splice and the fixture splice. The Western Union splice connects two conductors together and is particularly useful in repairing a broken wire.

What is a splice in construction?

A splice joint is a method of joining two members end to end in woodworking. The most common form of the splice joint is the half lap splice, which is common in building construction, where it is used to join shorter lengths of timber into longer beams.

What is the difference between splice and joint?

is that splice is to unite, as two ropes, or parts of a rope, by a particular manner of interweaving the strands, — the union being between two ends, or between an end and the body of a rope while joint is to unite by a joint or joints; to fit together; to prepare so as to fit together.

How to make a Western Union short tie splice?

To make western union short tie splice approximately 3 inches of exposed wire on the 2 wires you plan on connecting about a half a bend each wire to a 90. <<>> To make a western union splice put a 90 degree bend on the two wire ends. Inter lock the two ends together.

How do you splice wires?

Search; “Western Union Splice” and/or “W.U. Tee Splice”. Soldering needs to be quick – Use a Weller Expert (model 4100 for example) 100/140 Watt Gun. Clean tip, apply a bit of rosin core solder THEN touch the wire, add a bit of solder. remove gun.

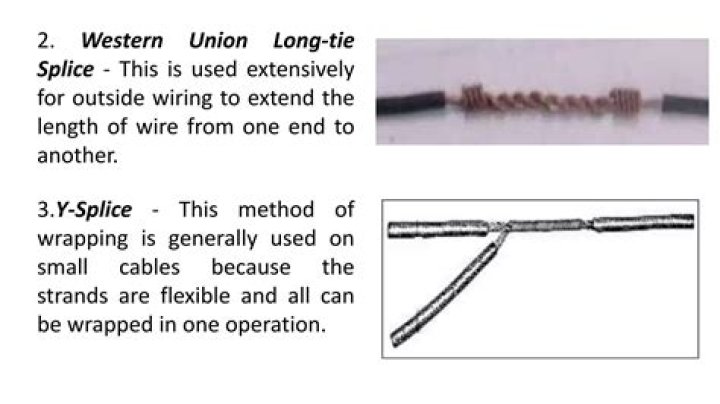

What is the difference between short tie and long tie wire?

“Short tie” and “long tie” variations exist, mainly for purposes of coating the connection with solder. The longer version may aid in solder flow. NASA tests on 22 and 16 AWG wire showed that the Western Union Splice is very strong and is stronger than the wire alone if done properly.

What is a Lineman splice?

The Western Union or Lineman splice was developed during the introduction of the telegraph to mechanically and electrically connect wires that were subject to loading stress.
