What size is an IPR valve socket?
By Mia Lopez

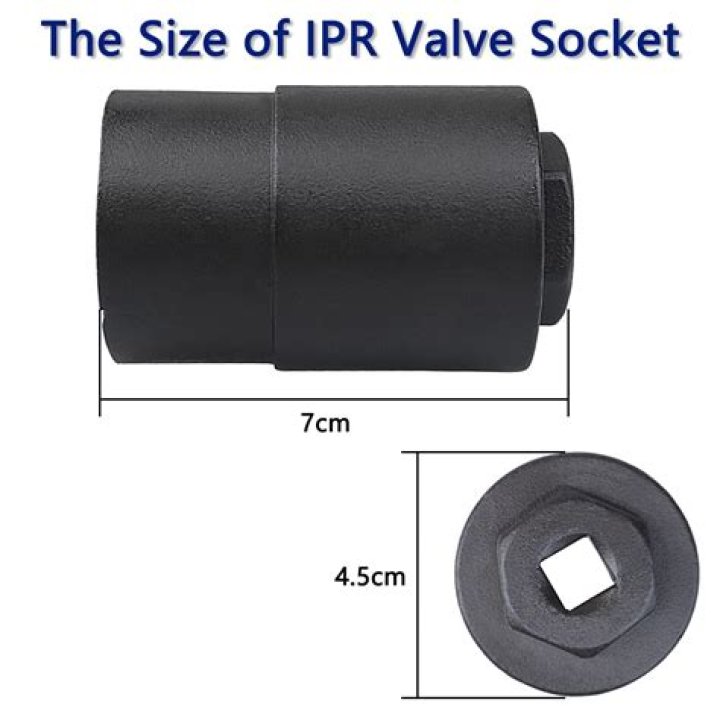

What size is an IPR valve socket?
Enhance your purchase
| Brand | Lisle |
|---|---|
| Item Dimensions LxWxH | 1.7 x 1.7 x 1.5 inches |
| Size | 3/8″ |
| Material | Alloy Steel |
| Drive System | Hook |
What size is IPR valve on 6.0 PowerStroke?
The IPR is 1 1/8″.
What should 6.0 IPR read?
While cranking engine, IPR duty cycle should start at approximately 85% and slowly decrease during a long crank condition once ICP climbs. An IPR valve defaults to 15% if it is unplugged or has failed.
What does IPR stand for Ford?
A Powerstroke engine utilizes an electromagnetic valve to regulate the high pressure oil pressure on the engine to tailor the injection characteristics of the injectors. This valve is called the Injection Pressure Regulator or IPR.
What is a IPR sensor?
The IPR valve and ICP sensor work together as part of a feedback cycle to control the oil pressure to the injectors in the HEUI fuel system. The ICP reports the actual pressure to the PCM which then makes an adjustment in the position of the IPR valve to bring actual pressure into sync with desired pressure.
What is a ICP sensor 7.3 Powerstroke?
Description. The ICP (Injection Control Pressure) Sensor is responsible for controlling the IPR (Injector Pressure Regulator) Valve in the Ford 7.3 Powerstroke. A faulty ICP Sensor can cause all kinds of problems. Poor idle, stalling, surging, or not even allowing the engine to start at all.
Will 6.0 Powerstroke start with IPR unplugged?
it can run with the ICP unplugged but not with the IPR unplugged.
Where is the IPR sensor on a 6.0 Powerstroke?
The IPR valve is located in the output circuit of the high pressure oil pump (HPOP).
What is the IPR on a 6.0 Powerstroke?
The 6.0L PowerStroke engine uses an Injection Pressure Regulator (IPR) valve to control the output pressure of the high pressure oil pump. A faulty IPR valve can leave your 2005 to 2007 Ford Super Duty and 2005 Ford Excursion with power loss, poor idling and can even result in the engine stalling out.
Can you run a 7.3 with the ICP unplugged?
yes you can run the 7.3L w/o the ICP sensor plugged in… though you’ll be staring at the SES/CELight constantly…
