What size beam should I use for deck?

What size beam should I use for deck?

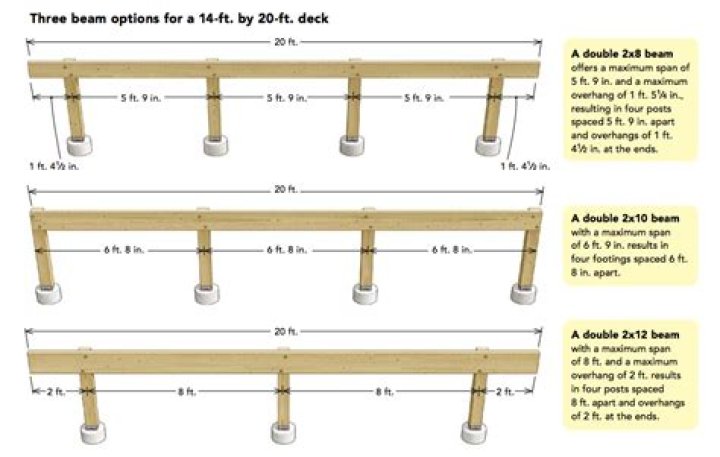

The span of the joists the beam is supporting also determines the maximum deck beam span between support posts. According to IRC, a two-ply 2×10 beam supporting a joist that spans 8 feet between supports requires beam support posts every 9-feet. Whereas a 10 feet can span up to 6 feet 6 inches.

How far can a 2×10 deck beam span without support?

A 2×10 beam – made up of two 2x10s nailed together – can span up to 11′ without support beneath a deck that is 4′ wide. For a more normal-sized deck, the same beam can span 8′, supporting a deck that is 8′ wide.

How far apart should support beams be for a deck?

Deck joists are typically spaced either every 12 inches or 16 inches on center. The maximum joist spacing you can use will depend on the size and allowable span of your joists.

How far can a double 2×8 deck beam span?

Depending on various factors, the maximum span for a 2×8 floor joist is 16′ 6”. The maximum span for roof rafters is 23′ 9”. For headers, the maximum span is 11′ 2”. Finally, a single deck beam has a maximum span of 5′ 11” and double maxes out at 8′ 9”.

Should I use 2×10 or 2×12 deck beams?

Joist Spacing (o.c.) For conventional guardrail post installation bolted to the side of the framing, larger framing will provide more strength in the rails. For upper-level decks, 2×10 is recommended as the minimum size to use for strong guard post connections.

Can I use 2×8 for deck beams?

2×8 for joists will be fine, with 16″ OC. Should use 2×10 for beams but 2×8 will be fine as well. If you are worried you can triple the 2×8 for the beams but double will be sufficient. You should put the beams at 7 and 14 feet out from the house, with the piers you should do 3 per beam with spacing of 1, 7, 13.

Can I use 2X6 for deck beams?

2×6 joists should only be used on ground-level decks that do not require, and will not provide for, any guards. Most decks use 16″ on center spacing for joists. Most decking is not strong enough to support longer spans than 16″.

Should I use 2×10 or 2X12 deck beams?

How many footings do I need for a deck?

The standard rule for footings is that for a basic deck, the larger the beam and footing size, the fewer footings you’ll need. If you’re building a simple deck, footings and posts should be placed less than 8 feet apart.

How many footings do you need for your deck?

The standard rule for footings is that for a basic deck, the larger the beam and footing size, the fewer footings you’ll need. If you’re building a simple deck, footings and posts should be placed less than 8 feet apart . However, if your deck will include a hot tub or roof, you must support that weight with additional footings.

What size floor joist for a deck?

Two-by-6 inches is a joist size frequently used in both indoor floors and as deck joists. In joist sizes, the larger size, such as 6 inches, represents the height of the joists, while the 2-inch size represents the joist width or the area on which the floorboards sit.

How far can you cantilever a deck joist?

Most cantilevers have a 3:1 ratio. The most common example of this you will find is a deck that attaches to a house that is 12 feet perpendicularly away from the house. The outer support beam must be no closer to the house than 9 feet (or, no more than 3 feet can hang over the outer beam unsupported).
