What methods are used for engine crack detection?

There are three methods of crack detection especially for carbon steel, these are;

Magnetic particle testing or inspection,
Liquid penetrate inspection,
Eddy current testing method, and.
Eddy current array (ECA).

Which sensor is used for crack detection?

In the first step, an optical fiber sensor is fixed inside the reinforced concrete beam, which will be used for internal crack monitoring based on BOFDA technology.

What does NDT mean?

Non-Destructive Testing
NDT stands for Non-Destructive Testing. It refers to an array of inspection methods that allow inspectors to evaluate and collect data about a material, system, or component without permanently altering it. NDT may also be called: NDE (non-destructive examination or evaluation) NDI (non-destructive inspection)

How can you tell if aluminum is cracked?

Use a can of Spotcheck developer (Spotcheck SKD-S2) on the aluminum. Once the aluminum has been fully covered, any crack in the material should appear as a bright red dot or line as a result of the earlier penetrating dye. If you don’t see any red marks, the aluminum should be crack-free.

Can you drive with a cracked engine block?

Fluid leaking from your engine may barely be noticeable at first, but gets worse over time. It’s still always inadvisable to be driving with a cracked engine block. Once the damage gets worse, the more obvious symptoms of a cracked block are engine smoke, and your engine overheating.

How does ultrasonic detect cracks?

4 Ultrasonic testing for crack detection. The ultrasonic probe generates high frequency ultrasonic energy, which is introduced and propagated through the materials in the form of shear waves. In the presence of a flaw, part of the energy will be reflected by the flaw surface.

How do you check an aluminum head for cracks?

How to Check Aluminum Heads for Cracks

Clean the aluminum head.
Shake a can of penetrating dye for 30 seconds.
Wipe the dye from the aluminum head with a clean rag.
Shake a can of developer for 30 seconds.
Inspect the head for cracks and pits.

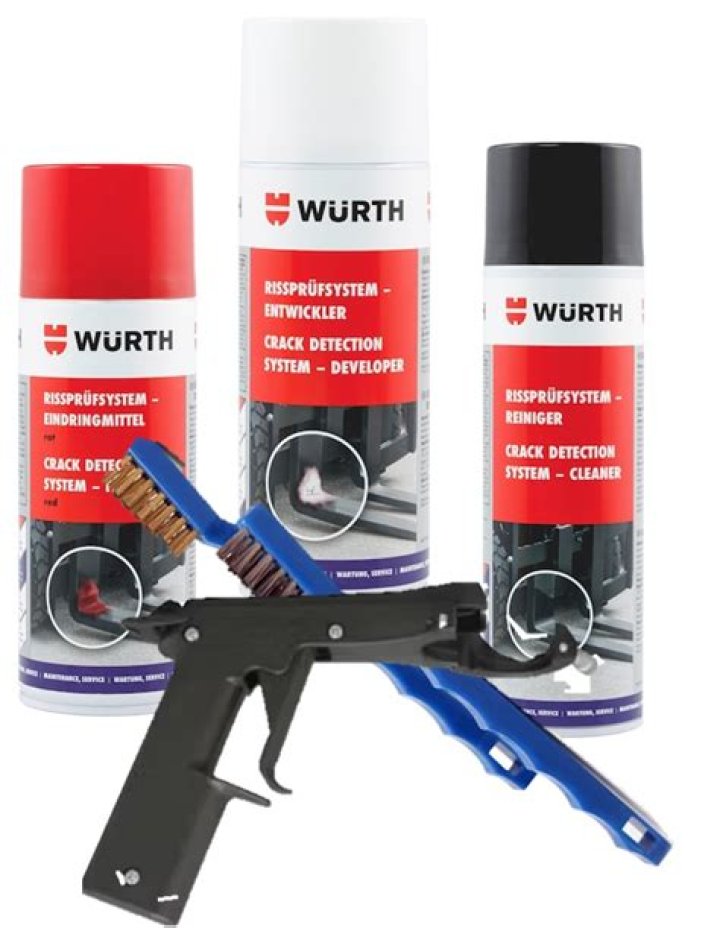

How do you use crack detection spray?

Spray on from a distance of 8 to 12 inches moving can slowly and evenly across area to ensure total coverage. For the best results use at temperatures in excess of 12°C. Clean part to be inspected with CRACK DETECTOR CLEANER. Apply DYE PENETRANT which is coloured with a red dye.

What are the methods of crack detection?

This method of crack detection can be used in detecting hairline cracks, porosity on the surface of material, leakages in new products and fatigue cracks present in in-service components. The liquid penetrant inspection makes use of low surface/tension fluid to penetrate dry surfaces, to detect flaws.

How do you check for cracks in engine blocks?

Crack Detection/Magnaflux Due to the age and stress of most engines the Magnaflux method is utilized to identify cracks in cylinder heads, engine blocks, connecting rods and crankshafts as well as other components of the engine that need to be checked.

How to find cracks in castings and other components?

There are a variety of techniques that can be used by themselves or in combination with other methods to find cracks in castings and other components. These include magnetic particle inspection, various types of penetrating dyes, pressure testing, vacuum testing and ultrasonic (acoustic) testing.

Can I do a DIY crack and flaw inspection?

Fortunately, there is an inexpensive, at-home way to perform a DIY crack and flaw inspection on many of your car’s components. The method is called visible dye penetrant testing. This method allows quick and accurate crack detection on almost any solid material such as metal, most plastics, rubber and nonporous ceramics.
