What is USTC wire?
By Mia Lopez
What is USTC wire?

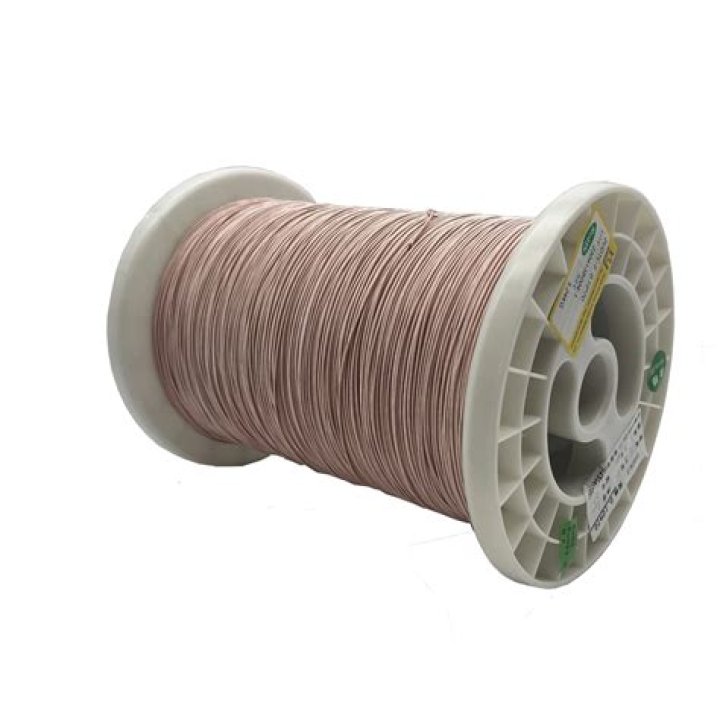

Litz wire, also known as bunched wire, is designed to reduce the skin effect and proximity effect losses in conductors used at frequencies up to about 1 MHz. USTC wire has a nylon top coat over the regular litz wires to enhance the mechanical properties of insulation coat. …
Is Litz wire insulated?
Litz wire is constructed of individually insulated magnet wires bunched or braided together in a uniform pattern so that each strand takes all possible positions in the cross section of the overall conductor.
How does Litz wire reduce skin effect?
Reduces Skin Effects The skin effect is happens in conductors of alternating current (AC). By using multiple wires within one cable, however, litz wire minimizes this effect by distributing AC current throughout the entirety of the wire rather than letting it travel along the surface.
What is the use of a Litz wire in a transformer?
Litz wire is used to make inductors and transformers, especially for high frequency applications where the skin effect is more pronounced and proximity effect can be an even more severe problem.
What is the maximum frequency at which a Litz wire can be used?
Litz wire is very effective below 500 kHz; it is rarely used above 2 MHz as it is much less effective there. At frequencies above about 1 MHz, the benefits become gradually offset by the effect of parasitic capacitance between the strands.
What is the difference between a Litz wire and an impedance wire?
Litz wire has a higher impedance per unit cross-sectional area but litz wires can be used at thicker cable sizes, hence reducing or maintaining cable impedance at higher frequencies. Construction of litz wires usually involves extremely fine wires often available with a silver plate or solid silver.
How does a loadlitz wire reduce resistance?
Litz wire reduces the increase in resistance of wire that takes place at higher frequencies due to two effects: skin effect and proximity effect . The resistance of a conductor depends on its cross-sectional area; a conductor with a larger area has a lower resistance for a given length.
