What is psychometric chart?

What is psychometric chart?

Psychrometric charts are complex graphs that can be used to assess the physical and thermodynamic properties of gas-vapour mixtures at a constant pressure. They are often used to assess the properties of moist air.

How do you use humidity chart?

Take a ruler and draw a vertical line at the dry bulb temperature of 70 and draw a horizontal line where the dew point is 50. The point where these two lines intersect is known as a ‘state point’. Plot the state point and you can also read the rel- ative humidity, wet bulb, enthalpy, vapor pressure and humidity ratio.

What is psychrometric chart Slideshare?

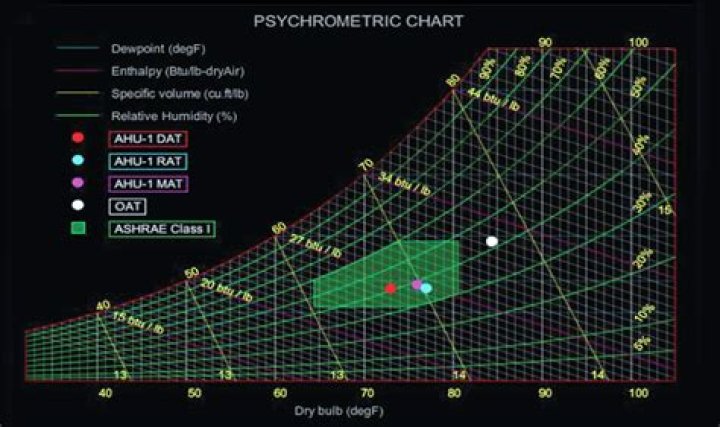

Psychrometric chart description O Vertical lines are dry-bulb temperature O Horizontal lines are humidity ratio (right axis) or dew point temp (left axis) O Slanted lines are wet-bulb temp and enthalpy O Specific volume are the “other” slanted lines.

Why is psychrometric chart important?

A psychrometric chart presents physical and thermal properties of moist air in a graphical form. It can be very helpful in troubleshooting and finding solutions to greenhouse or livestock building environmental problems.

What does a dew point of 50 mean?

If a given volume of air or space contains only half the water vapor molecules required to become saturated, for example, the relative humidity would be 50%. The dew point can tell us where moist or dry air is located and how it is changing.

What does 70 dew point mean?

A dew point of 70 or above is really going to weigh you down and bump up the feels like temperature significantly. Comfort Scale. Warmer air is able to sustain higher levels of water vapor. That’s why hot summer days have the potential to bring higher dew points and the most oppressive feels-like conditions.

What do you know about humidity?

Humidity is the amount of water vapor in the air. If there is a lot of water vapor in the air, the humidity will be high. The higher the humidity, the wetter it feels outside. On the weather reports, humidity is usually explained as relative humidity.

What is DPT in thermodynamics?

Dew point temperature (DPT) is the temperature at which a moist air sample at the same pressure would reach water vapor “saturation.” At this point further removal of heat would result in water vapor condensing into liquid water fog or, if below freezing point, solid hoarfrost.

What are the various lines and curves in the psychrometric chart?

Various Lines and Curves in the Psychrometric Chart. All the properties of air indicated in the psychrometric chart are calculated at standard atmospheric pressure. For other pressures, relevant corrections have to be applied. The psychrometric chart looks like a shoe. The various lines shown in the chart are as follows (please refer the fig).

How do I use the psychrometric chart in the app?

When it first starts up, the app displays a standard empty psychrometric chart. You can choose to add or remove axis lines for a range of different metrics, or even highlight individual axis lines in red to assist with dynamic explanations or interactive presentations.

Where do I find the WB temperature on the psychrometric chart?

On the psychrometric chart locate value 78oF on the DB temperature scale located at the bottom of the chart. Locate WB temperature of 65oF on the saturation curve scale.

How are the properties of air calculated on the psychrometric chart?

All the properties of air indicated in the psychrometric chart are calculated at standard atmospheric pressure. For other pressures, relevant corrections have to be applied. The psychrometric chart looks like a shoe.
