What is orifice pressure drop?
By Gabriel Cooper

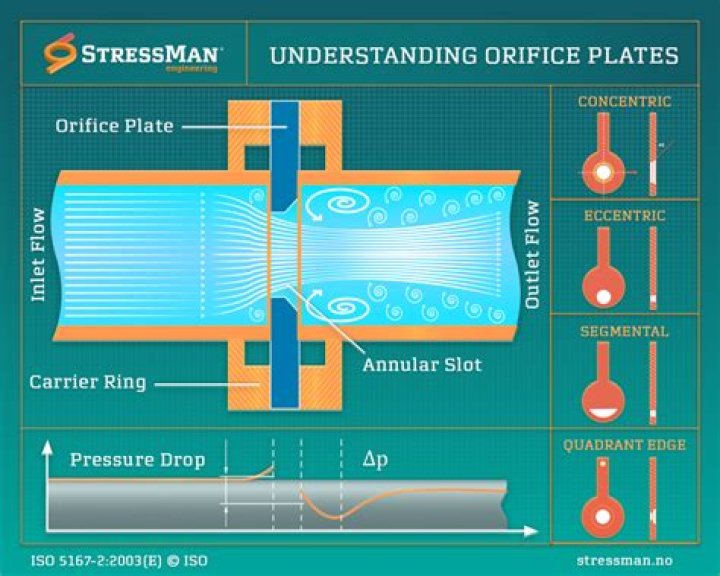

What is orifice pressure drop?
Pressure drop is often defined as the difference in pressure between two points of a fluid in a conduit. Orifice plate pressure drop calculator is used for flow rate measuring in pipe systems. With orifice plate, pressure drop is created. Based on the magnitude of pressure drop, flow rate can be calculated.
What is the Weir equation?
The Weir formula is a formula used in indirect calorimetry, relating metabolic rate to oxygen consumption and carbon dioxide production. According to original source, it says: Metabolic rate (kcal per day) = 1440 (3.94 VO2 + 1.11 VCO2)
What is the equation for pressure drop in fluid flow through pipe when flow is laminar?
For laminar flow in a tube, Poiseuille’s law for resistance states that R=8ηlπr4. Poiseuille’s law for flow in a tube is Q=(P2−P1)πr48ηl. The pressure drop caused by flow and resistance is given by P2−P1=RQ.
How do you calculate flow over weir?
The flow rate over a weir can be calculated using the following equation:(1) Q w = 2 3 B 2 g H 3 2 where (Qw) is the theoretical discharge over the weir [L3/T], (B) is the effective weir length [L], (H) is the head over the weir crest [L] and (g) is the acceleration due to gravity [L/T2]. Figure 1.
What is the flow rate through an orifice?
The orifice equation describes the rate of flow of liquid through an orifice. The equation can be represented as: $ Q = Cd A\\sqrt{2gh} $. where Q = flow (cubic metres per second) C(d) = coefficient of discharge. A = area of orifice (square metres) g = acceleration from gravity (9.81 m/s^2)
How to calculate orifice size?
Divide the flow of the liquid by the velocity of the liquid to determine the area of the orifice in square feet. In the above example, you would divide 8 by 2. The total area of the orifice would be 4 square feet.
What is the orifice coefficient?
Cc is called the coefficient of contraction. For a sharp orifice, is usually estimated to be 0.62, a figure that can be used if the exact value is not known. For an orifice that resembles a short tube, Cc = 1, but then there are turbulence losses that affect the discharge.
What is critical pressure drop?
Pressure drop of control valve. For flow at greater than critical pressure drop (also known as choked flow) the sizing is done on the choke drop. This, by definition will be less than the actual drop, but the flowrate becomes independent of downstream pressure when the DP exceeds critical. The term “Choked Flow” tends to scare people.
