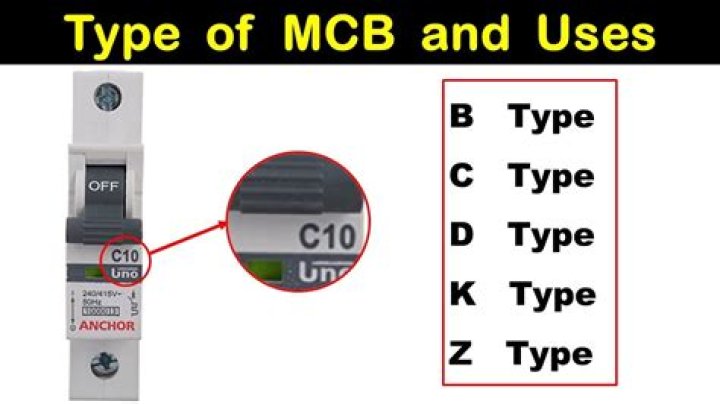

What is MCB type C?

C-Curve MCB ‘C’ Curve MCB is used for the protection of circuits with equipment that cause surge current i.e. low-HP motors used for air-conditioners, small mono block and submersible pumps with mainly Inductive Load.

What are Type C MCBs used for?

Type C circuit breakers are used for more powerful electrical devices where any surges are likely to be higher – typically commercial and industrial environments. They are designed to trip at currents between five and ten times their rated load. Good examples include smaller electric motors and fluorescent lighting.

What is tripping characteristics of MCB?

The MCB trip curves, also known as I-t tripping characteristic consist of two sections viz, overload section and short circuit section. Overload section describes the trip time required for various levels of overload currents and the short circuit section describes the instantaneous trip current level of MCB.

Which MCB is best for home?

The best-suited type of MCB for domestic appliances, where the current load is medium, is type C. Type C MCB trips off when the flow of current is 5-10 times more than normal. Type D MCB has a high resistance as they can withstand up to 10-20 times the current rate.

Which MCB is suitable for halogen lamp?

Answer: Type B devices are generally suitable for domestic applications. They may also be used in light commercial applications where switching surges are low or non-existent. Type C devices are the normal choice for commercial and industrial applications where some degree of electrical inrush is expected.

What is the difference between MCB and MCCB PDF?

The MCB is largely used in low circuit current, while MCCB is used for the heavy current circuit. The MCB is used for low energy requirements (domestic purposes), whereas the MCCB is used in high energy requirement regions (large industries).

Can we use MCCB instead of MCB?

2. MCB generally used in the household, the commercial and industrial purpose for low current protection whereas MCCB used in the commercial and industrial purpose for high current protection. 3. MCCB can trip during the under voltage condition but MCB cannot trip in under voltage condition.

Can I use a Wylex MCB in a wyliex unit?

Hello. As per 18th Edition regulations you cannot mix manufacturers brands so a Wylex MCB should be fitted into a Wylex unit. As always you should consult a qualified electrician for any installation work. Thank you for your interest in our Wylex brand.

What are the trip characteristics of the MCB?

MCB with class C trip characteristics trips instantaneously when the current flowing through it reaches between 5 to 10 times the rated current. Suitable Domestic and residential applications and electromagnetic starting loads with medium starting currents. Class D trip curve

Are Wylex MCBS a direct swap for NSB series MCBS?

NB: Contactum (the company who manufacture WYLEX) have confirmed to us that the NHX series MCBs are a direct swap for previous NSB series MCBs/RCBOs. They paid us to install NHX MCBs into NSB board during the massive recall completed on their NSB circuit breakers.

What is the difference between MCB Class B and Class C?

The MCB with class B trip characteristics trips instantaneously when the current flowing through it reaches between 3 to 5 times rated current. These MCBs are suitable for cable protection. MCB with class C trip characteristics trips instantaneously when the current flowing through it reaches between 5 to 10 times the rated current.
