What is LM3886?

The LM3886 is a high-performance audio power amplifier capable of delivering 68W of continuous average power to a 4Ω load and 38W into 8Ω with 0.1% THD+N from 20Hz–20kHz.

What is a Gainclone amplifier?

Gainclone or chipamp is a type of audio amplifier made by do-it-yourselfers, or individuals interested in DIY audio. It is a design based on high-power integrated circuits, particularly the National Semiconductor Overture series. As an amplifier it is highly regarded by many in the DIY community.

How do you make an audio amplifier?

An amplifier needs to be designed so that noise at its output remains constant irrespective of the signal. Also, signal to noise ratio should remain high for the entire operating range of the amplifier. So, the amplifier must have a high Signal to Noise Ratio (SNR) which must be a constant over its operating range.

What is a Thiele network?

The importance of the Zobel and Thiele networks is pretty obvious here… The improvement is mainly due to the Thiele network. Let’s explore that a bit from an intuitive standpoint. There are three main frequency regions of interest: Low frequency: Audio frequencies.

How do you make a simple amp circuit?

First, take the 13007 Transistor. The.
Then take a 1k Resistor and then connect it with the Base pin and the Collector pin.
Now take a 1000uF Capacitor.
Now let’s connect the 3.5MM Jack wires.
Power Supply Connection: This circuit can work with any voltage between 5 to 12V.
Step 6: Conclusion:

Can a transformer be used as an amplifier?

Transformer is not an amplifier, because: Transformer follows the principle of induction where as Amplifier follows the principle of boosting the signal (voltage or current). Actually, the amplifier generates a completely new output signal based on the input signal.

Do I need a Zobel network?

The most compelling reason to use a zobel on a passive crossover network is to provide a flat impedance as seen by the amplifier. Especially with tube outputs with little to no feedback, performance of the amplifier is optimized with a flat impedance vs frequency.

What is the power output of the LM3886?

The LM3886 is a high-performance audio power amplifier capable of delivering 68W of continuous average power to a 4 ohm load and 38W into 8 ohm with 0.1% THD+N from 20Hz – 20kHz. For the full details and operating parameters of the LM3886 IC refer to the LM3886 Datasheet – (PDF 1.2MB).

Is the LM3886 the best audio chip amplifier?

The LM3886 is one of the most highly regarded audio chip amplifiers in the DIY community. The reason for its popularity is due to its very low distortion, minimal external components, and low cost. With the right layout and component selection, you can build an excellent sounding Hi-Fi…

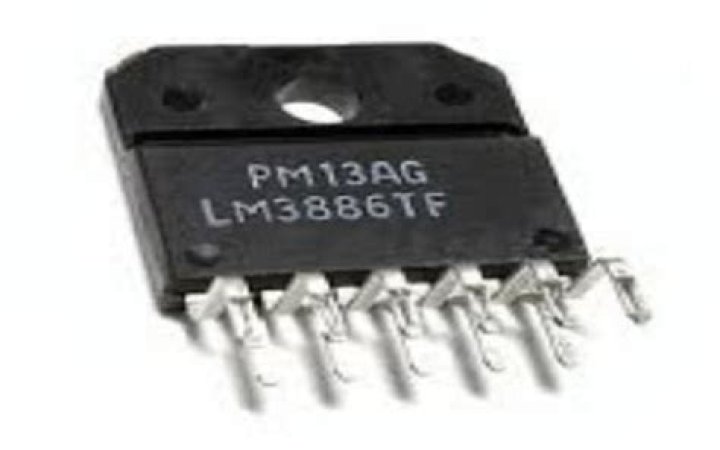

What is the difference between the lm3886t and thelm3886tf?

The LM3886T has a metal flange on the back of the case, and the LM3886TF is all plastic. The plastic case of the LM3886TF gives it a higher θ cs:

What is the difference between the LM3886 and the K-12 tube amplifier?

The main different between the two DIY amplifiers is output power – into 8 ohm the K-12 tube amp is about 8W, while the LM3886 is 35W+. From a practical point of view, the LM3886 chip amplifier is far more flexible as it has much more available power and can easily drive a wide variety of speaker loads.
