What is fixed bias circuit?
By Sophia Dalton
What is fixed bias circuit?

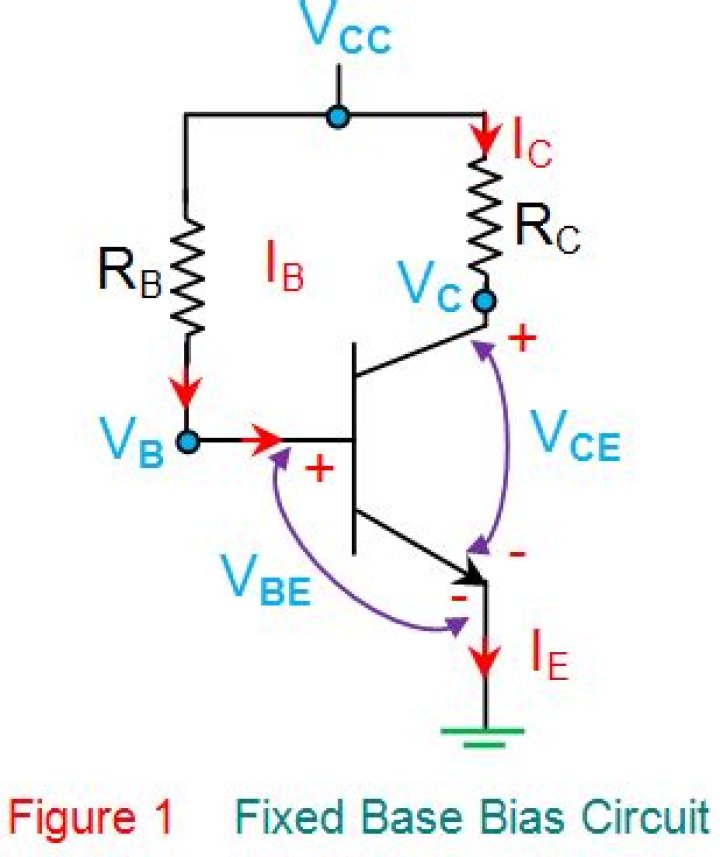

Fixed Base Biasing a Transistor The circuit shown is called as a “fixed base bias circuit”, because the transistors base current, IB remains constant for given values of Vcc, and therefore the transistors operating point must also remain fixed.
What is fixed bias amplifier?
In the base circuit, For a given transistor, VBE does not vary significantly during use. As VCC is of fixed value, on selection of RB, the base current IB is fixed. Therefore this type is called fixed bias type of circuit.
What are the different types of biasing circuits?
Types of bias circuit for class-A amplifiers
- Fixed bias.
- Collector-to-base bias.
- Fixed bias with emitter resistor.
- Voltage divider bias or potential divider.
- Emitter bias.
What is binary fixed bias?
A fixed-bias binary circuit is similar to an Astable Multivibrator but with a simple SPDT switch. Two transistors are connected in feedback with two resistors, having one collector connected to the base of the other. The collector voltage at VO2 will be equal to VCC which is applied to transistor Q1 to turn it ON.
Which biasing is best for BJT?
Re: biasing BJT/MOS Voltage divider bias is the best in terms of stability as it is independent of device parameter changes and also not affected by variation in temperature.
What are the limitations of fixed bias circuit?
Demerits: The collector current does not remain constant with variation in temperature or power supply voltage. Therefore, the operating point is unstable. Changes in supply will change base current and thus cause emitter current to change.
Which type of biasing is better?
Voltage divider bias is more stable because the biased voltage will not change. It is best to use voltage divider bias for accuracy.
Which bias is more stable?
Hence collector to base bias is more stable.
What is fixed bias in circuit?
Fixed biasing is a type of bias where base current is maintained constant for given Vcc by using fixed resistor. So operating point must remain fixed using this two resistor and fixed current, initial operating point has to found. Why is voltage divider bias called a self-biased circuit?
What are the types of biasing circuits used in amplifiers?
Types of bias circuit for class-A amplifiers. The following discussion treats five common biasing circuits used with class-A bipolar transistor amplifiers: Fixed bias. Collector-to-base bias. Fixed bias with emitter resistor. Voltage divider bias or potential divider. Emitter bias.
How to Biase a transistor?
The first circuit for biasing the transistor is CE configuration is fixed bias. In biasing circuit shown in fig. 4 (a), two different power supplies are required. To avoid the use of two supplies the base resistance RB is connected to VCC as shown in fig. 4 (b). Now VCC is still forward biasing emitter diode.
What is the meaning of bias in electronics?
Overview. In electronics, bias usually refers to a fixed DC voltage or current applied to a terminal of an electronic component such as a diode, transistor or vacuum tube in a circuit in which AC signals are also present, in order to establish proper operating conditions for the component.
