What is difference between armature and stator?

What is difference between armature and stator?

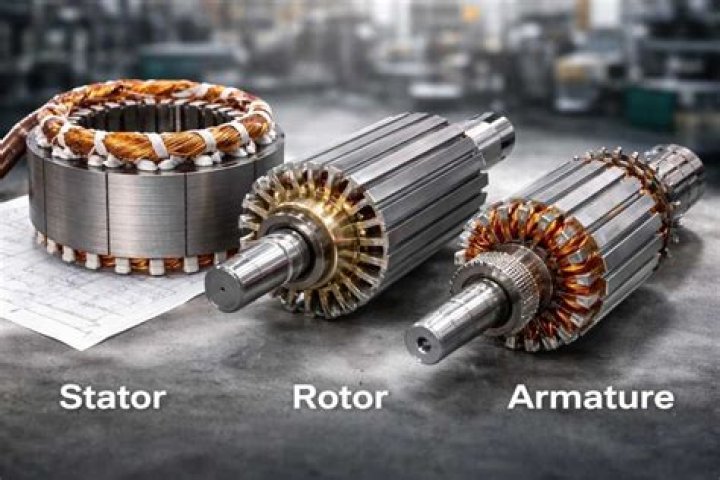

The armature is the winding to which the load is connected. Thus, the armature is the stator and the field is the rotor. DC machines. In DC machines, both motors and generators, the armature is the rotor, and the field is the stator.

What does a stator and rotor do?

An AC motor has two basic electrical parts: a “stator” and a “rotor” as shown in Figure 8. The stator is in the stationary electrical component. The rotor then is the rotating part of the AC motor. The objective of these motor components is to make the rotor rotate which in turn will rotate the motor shaft.

What is DQ Modelling?

Because it utilizes space vectors, the dq model of the machine provides a powerful physical interpretation of the interactions taking place in the production of voltages and torques, and, more importantly, it leads to the ready adaptation of positional- or speed-control strategies such as vector control and direct …

What is the difference between rotor and stator?

The stator and rotor both are the parts of the electrical motor. The significant difference between the rotor and the stator is that the rotor is the rotating part of the motor whereas the stator is the stationary part of the motor.

Which type of rotor is used in DC machine?

Salient pole rotor The rotor is a large magnet with poles constructed of steel lamination projecting out of the rotor’s core. The poles are supplied by direct current or magnetized by permanent magnets. The armature with a three-phase winding is on the stator where voltage is induced.

What is the difference between stator and rotor?

Why stator is used in DC motor?

In a DC motor, the stator provides a rotating magnetic field that drives the armature to rotate. These key operating principles of DC motors allow them to convert the electrical energy from direct current into mechanical energy through the rotating movement, which can then be used for the propulsion of objects.

What is the function of DQ transformation in induction motor control?

The fundamental reason to transform the three-phase instantaneous voltages and currents into the synchronously rotating reference dqo frame is to make computations much easier. Secondly, it allows the system operator to independently control the active (d-axis) and reactive (q-axis) components of the currents.

Are AC motors better than DC?

AC motors are generally considered to be more powerful than DC motors because they can generate higher torque by using a more powerful current. However, DC motors are typically more efficient and make better use of their input energy.

What are different types of motors?

Some of the most common electric motors used today include:

• AC Brushless Motors. AC brushless motors are some of the most popular in motion control.
• DC Brushed Motors. In a DC brushed motor, brush orientation on the stator determines current flow.
• DC Brushless Motors.
• Direct Drive.
• Linear Motors.
• Servo Motors.
• Stepper Motors.
