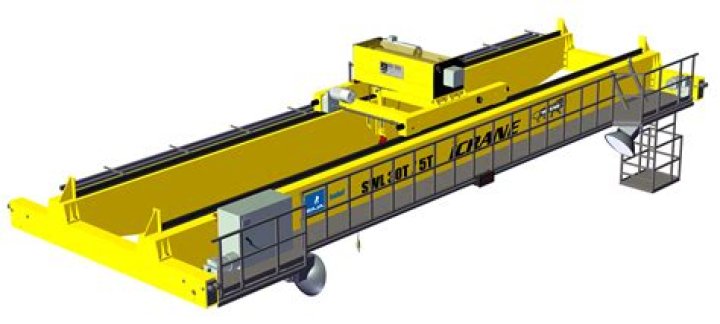

What is busbar in EOT crane?
By Gabriel Cooper
What is busbar in EOT crane?
EOT Crane Busbar System are used for the electrification of mobile equipment. Shrouded Bus bar is a safe, economical and low maintenance way to solve mobile electrification requirement. Systems can be designed to accommodate 60 to 400 amperes.
What is DSL in Eot Crane?
Direct Supply Line (DSL) refers to Angle Iron bus bars, supported on insulators, arranged length wise, at a safe height, in open to provide electric supply to EOT (Electric Overhead Travel) Cranes.
How do you measure a bus duct?
Bus bar Cross Section Area as per Short Circuit= 50000X√ ((1.166/( 100×100)x(1+ 0.00403×85) x1. Bus bar Cross Section Area as per Short Circuit=626 Sq.mm. Select Higher Size for Bus bar Cross section area between 436 Sq.mm and 626 Sq.mm. Final Calculated Bus Bar Cross Section Area =626 Sq.mm.
What is electrical bus?
An Electric Bus is any bus whose propulsion and accessory systems are powered exclusively by a zero-emissions electricity source. The electricity source can be onboard batteries, a hydrogen-fuel cell, overhead wires, like a trolleybus application, or ground-based non-contact conductors.
Which type of motor is used in EOT crane?
slip ring induction motor
The slip ring induction motor is connected to power resistance in 4 to 5 steps by power contactors.
How do you size a busbar?
Dzl said: The generalized answer is you size busbars in roughly the same way you size wire, figure out the maximum current (amps) that will be flowing through that circuit, select a fuse that is larger than that number (1.25x or greater is the rule of thumb) than size your wire and busbars larger than the fuse.
How is bus bar current calculated?
Which means, take a copper bus bar of 100 mm width and 10 mm thickness, the area of the copper bus bar is 10 * 100 sqmm. The total current carrying capacity of the busbar is 1.2 * area => 1000 sqmm* 1.2 =1200 Amps. Hence the total current carrying capacity of the copper 1200 Amps of 100mm width and 10 mm thickness.
What is a busbar chamber?
Busbar Chambers are the metallic strips or bars, housed inside the switchgear, panel boards and busway enclosures for high current power distribution and ensure straightforward network configuration. The main purpose of using is it to conduct a substantial current of electricity.
