What is axle counter system?

What is axle counter system?

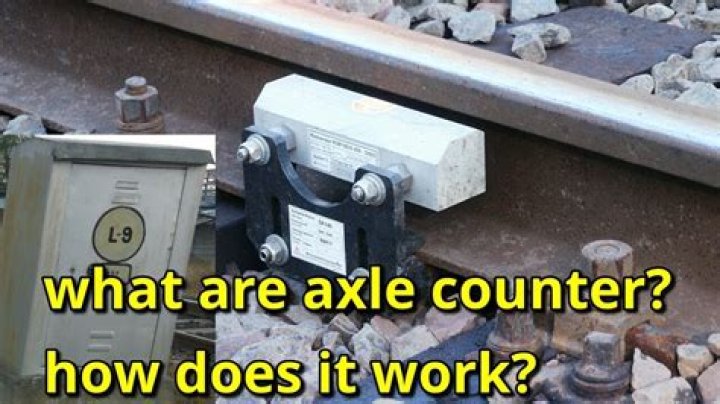

An axle counter is a system used in railway signalling to detect the clear or occupied status of a section of track between two points. The system generally consists of a wheel sensor (one for each end of the section) and an evaluation unit for counting the axles of the train both into and out of the section.

Are axle counters fail safe?

Both track circuit and axle counters are in fact failsafe. They are both designed to provide a ‘track occupied’ indication in the event of equipment failure e.g. power failure, broken wires, failed equipment, miscount (axle counter only) etc.

What is Block Proving axle counter?

Block Proving by Axle Counter is a system used for controlling the coordinated movement of the train in the block section working on absolute block working principle. The system has been developed as per RDSO/SPN/188/2004 Ver. 1 for single line block working, replacing the traditional single line block instruments.

What is Ssdac railway?

Introduction. The Single Section Digital Axle Counter SSDAC-710P is the latest model of Single Section Axle Counters from CEL. It is used for Train detection in station sectioned for detecting occupancy of railway track section primarily for the vital control of section occupancy.

What are red bonds railway?

Each (OLE) structure has a cable connecting it to the running rail. This is known as a bond. Some bonds are coloured red and are dangerous if they become disconnected. Rail vehicles display a cant rail warning line; this indicates the safe height limit if there is overhead line equipment (OLE) present.

What is axle train?

An axle counter is a device on a railway that detects the passing of a train between two points on a track. This allows the detection points to be located significant distances from the evaluator. …

What is railway taws?

TAWS® is a simple, automatic and autonomous signaling solution aiming at improving safety by generating light & sound alarm at critical locations of a rail network (schools, community areas, populated neighborhoods, non- guarded crossings, tunnels, blind curves, etc.) to announce a train approaching.

What is difference between axle counter and track circuit?

Simplistically, a track circuit proves the absence of a train, whereas an axle counter proves the presence of a train, as well as its length and direction of travel.

How do train axle counters work?

An axle counter is a device on a railway that detects the passing of a train between two points on a track. As the train passes a similar counting head at the end of the section, the counter compares count at the end of the section with that recorded at the beginning.

What is digital axle counter?

DIGITAL AXLE COUNTER (MULTI SECTION) 1. Introduction. Axle counter is a device for monitoring a specified section of track for the. presence of vehicle.

What is Ufsbi?

UFSBI(universal fail safe block. interface) for D/L. • It is non a co-operative , user-friendly. type block instrument capable of providing the last vehicle detection in both single line and double line section.
