What is audio jack in computer?

A common connector for plugging in a standard pair of music headphones such as the ones found on music players, computers and most other electronic devices with audio outputs. It can support stereo and/or microphone, depending on the number of separate connector rings on the jack.

How do I connect an audio jack to my computer?

Connect the sound cable with black connectors into the Rear Speaker Out port on the back of the computer. Plug the other end of the cable into the black port on the subwoofer, next to the green port. Connect the sound cable with orange connectors into the orange Center or Digital Out port on the back of the computer.

What is the headphone jack called on PC?

Other terms. Specific models, and connectors used in specific applications, may be termed e.g. stereo plug, headphone jack, microphone jack, aux input, etc. The 3.5 mm versions are commonly called mini-phone, mini-stereo, mini jack, etc.

What is a Mic jack?

A mic jack is a female-type connector in a mic or mic cable. A mic plug is a male connector that is inserted into the jack. The XLR output of a professional mic is a mic plug. A mic preamplifier input is considered a mic jack.

Do computers have 3.5 mm jack?

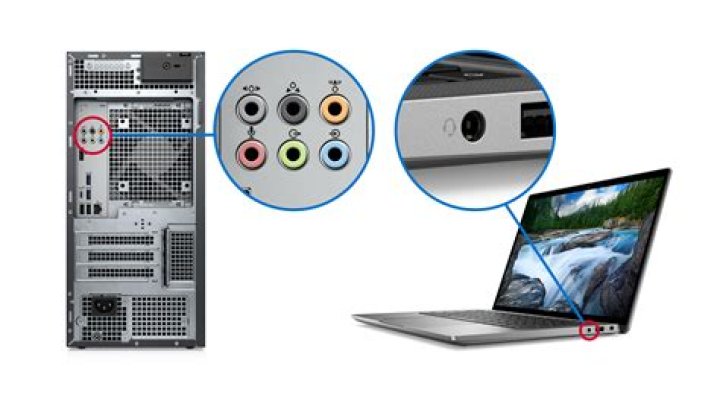

Locate your computer’s audio inputs. Laptop PCs typically have the 3.5 mm audio-out port on the left, right, or front side of the housing, while desktop PCs may have these ports on the front or back of the CPU box. Microphone ports are usually pink, while headphone ports are usually green.

Where is headphone jack on motherboard?

It has usually a headphone icon drawn above it. This jack of your case will be connected to your motherboard’s 9-pin HD Audio header via a cable that comes with your case.

How do I use a headset on my PC?

How to Connect a Gaming Headset to Your PC Easily

Check the PC’s Physical Audio Output.
Check the Gaming Headset Connectors.
Plug the Connector Into the Port.
Configure Sound Output on the PC.
Do a Mic Check.

Does my PC have 3.5 mm jack?

Laptop PCs typically have the 3.5 mm audio-out port on the left, right, or front side of the housing, while desktop PCs may have these ports on the front or back of the CPU box. Microphone ports are usually pink, while headphone ports are usually green.

Does my PC Support 3.5 mm jack?

3.5 is pretty much the normal input jack on a PC, so yes it will work.

How do I enable audio jack?

Right-click the speaker icon in the system tray and choose “Playback Devices” to open a Sound window displaying a list of installed and enabled devices. Right-click the blank area in the list of devices and choose “Show Disabled Devices.” All devices are displayed, and each device’s status is indicated by a symbol.

Why is my PC headphone jack not working?

Plug in your headphones and see if they show up. select your headphones at the bottom it will say set as default, select this option. If they don’t, then either your drivers (these things will tell your computer what kind of hardware it has and how to use it) are missing or the the headphone jack itself has failed.

What color is a PC microphone jack?

Unless your computer is very old, the jacks are color-coded green for line-out — for speakers or headphones — blue for line-in and pink for a microphone. The microphone and speaker jacks may also have small images next to them. The line-in jack is intended for music players or other audio devices.
