What is a size 14 screw?
By Matthew Alvarez
What is a size 14 screw?

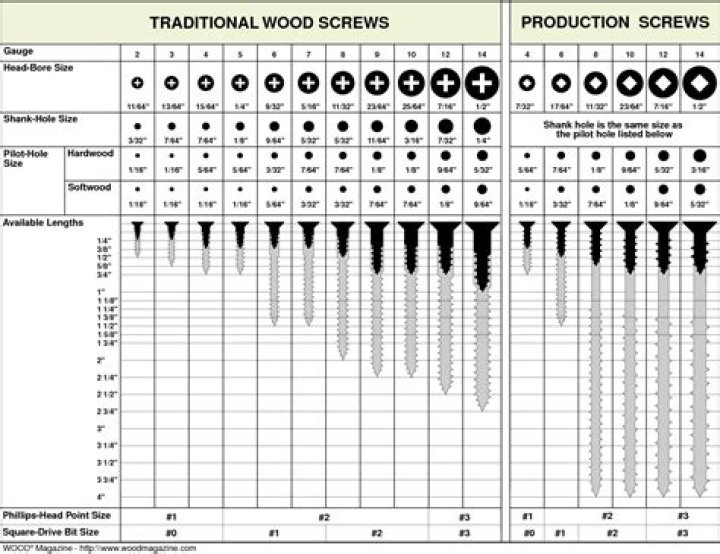

Wood Screw Diameters
| Size | Major Thread Diameter* | |
|---|---|---|
| Decimal | Nearest Fractional Measurement | |
| #12 | .216″ | 7/32″ |
| #14 | .242″ | 1/4″ |
| #16 | .268″ | 17/64″ |
How big is a standard screw head?
Head Dimensions for 82° Flat Head Machine Screws ANSI B18. 6.3 – 1998
| Nominal Size | A | F |
|---|---|---|
| Head Dimensions * | Protusion Above Gaging Diameter | |
| 4 | .212 | .032 |
| 5 | .237 | .034 |
| 6 | .262 | .036 |
Is a #12 or #14 screw bigger?
Machine screws are often found in sizes of: 0, 1, 2, 3, 4, 5, 6, 8, 10, 12, 14—the larger the number, the larger the screw.
How do you measure screw head size?
Length is measured from the point at which the head sits flat with the surface, to the tip of the threads. Hex, pan, truss, button, socket cap, and round head screws are measured from right under the head to the end of the threads. Flat head screws are measured from the top of the head to the tip of the threads.
Is there a #14 screw?
Hard-to-Find Fastener 1.5-Inch Phillips Head Flat Wood Screws, No. 14, 100-Piece.
What size is a #15 screw?
| Wood Screw Dimensions, Sizes, Head Diameters & Threads per Inch | ||
|---|---|---|
| Nominal Screw Size | Threads per Inch | Basic Diameter of Screw |
| 14 | 10 | 15/64 |
| 16 | 9 | 17/64 |
| 18 | 8 | 19/64 |
Does the length of a screw include the head?
Does Screw Length Include the Head? The nominal length of a screw is usually, though not always, measured from below the head to the tip of the screw. If no head exists, such as on a grub screw or threaded bar, the screw would be measured from end-to-end.
