What is a breadboard used for?
By Matthew Alvarez
What is a breadboard used for?

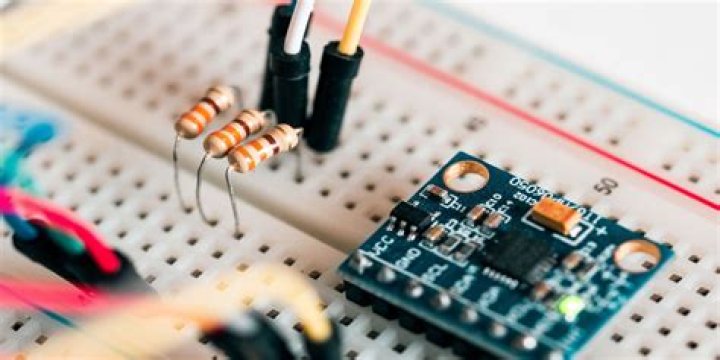

A breadboard is used to build and test circuits quickly before finalizing any circuit design. The breadboard has many holes into which circuit components like ICs and resistors can be inserted.
What are the two basic types of breadboards?
There are two major types of breadboards; these are solder and solderless boards. Solder boards are boards you have to solder components onto (per the name). These are most of your standard circuit boards, and if you flip one over you’ll notice that all of the connections are soldered to the board itself.
Why are breadboards called?
A breadboard, or protoboard, is a construction base for prototyping of electronics. Originally the word referred to a literal bread board, a polished piece of wood used when slicing bread. This makes it easy to use for creating temporary prototypes and experimenting with circuit design.
What is the price of breadboard?
REES52 400 Point Solderless Breadboard
| M.R.P.: | ₹500.00 |
|---|---|
| Price: | ₹220.00 |
| You Save: | ₹280.00 (56%) |
| Inclusive of all taxes |
What are the main features of a breadboard?
The specifications & features of a breadboard, include the following.
- Distribution Strips are two.
- Wire Size is 21 to 26 AWG wire.
- Tie Points are two hundred.
- Withstanding Voltage is 1,000V AC.
- Tie points within IC are 630.
- Insulation Resistance is DC500V or 500MΩ
- Dimension is 6.5*4.4*0.3 inch.
- Rating is 5Amps.
What are advantages of using breadboards?
Advantages of Breadboard :
- It has easy to quick to check for easy and complex circuits both and it has easily verified circuits at the initial stage, so it can save time.
- Quick to check component around.
- It is easy to adjust.
- It is flexible.
- No drilling holes.
- No soldering required.
- It can be debugged easily.
What is a prototyping board?
In electronics, prototyping means building an actual circuit to a theoretical design to verify that it works. They are generally called prototyping boards. Prototyping boards have holes to which you affix electronic components to build your desired circuit.
Which way do breadboards run?
Aside from horizontal rows, breadboards usually have what are called power rails that run vertically along the sides.
What is male to male jumper wires?
Male ends have a pin protruding and can plug into things, while female ends do not and are used to plug things into. Male-to-male jumper wires are the most common and what you likely will use most often. When connecting two ports on a breadboard, a male-to-male wire is what you’ll need.
What is the recommended size of wire to use in a breadboard?
Probably the most common breadboarding wire is simple solid core wire. This is typically sold in spools of varying lengths and many different colors. The commonly recommended size for wire associated with bread boarding is 22awg or 0.64 mm.
