A serial port complying with the RS-232 standard was once a standard feature of many types of computers. Personal computers used them for connections not only to modems, but also to printers, computer mice, data storage, uninterruptible power supplies, and other peripheral devices.

What type of connector would an RS232 cable use?

The original pin layout for RS232 was developed for a 25 pins sub D connector. Since the IBM-AT, 9 pins RS232 connectors are commonly used. In mixed applications, a 9 to 25 pins converter can be used to connect connectors of different sizes.

Is VGA and RS232 the same?

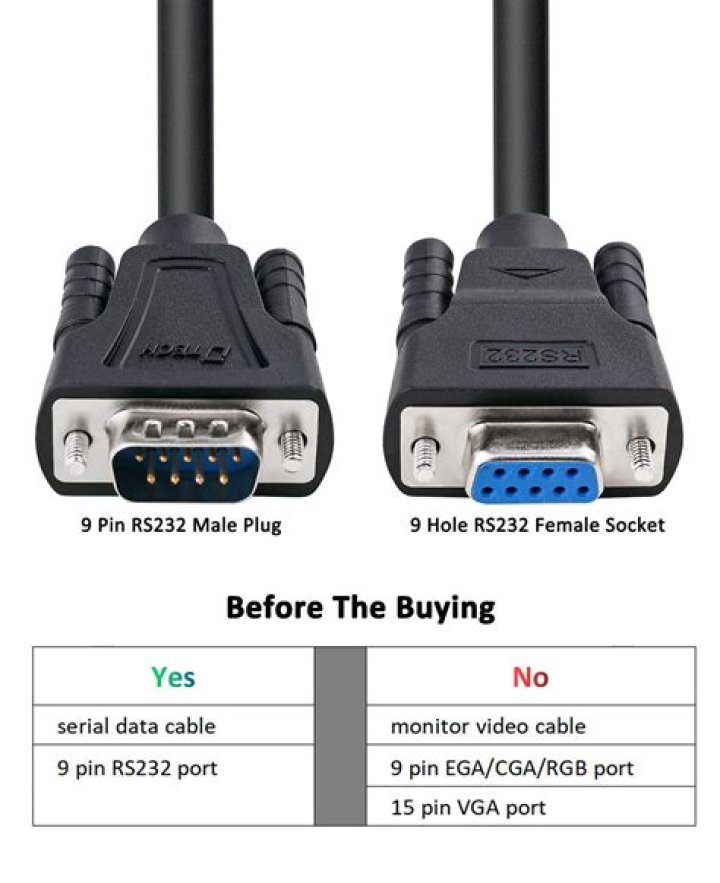

But I’m curious because you say that the connectors look “exactly like VGA ports.” Usually RS232 utilizes a DB9 (DE9 for the educated and/or purist) with is the same size as a VGA (HD15) but has only 9 pins in two rows instead of 15 pins in three rows.

Which connector is most commonly associated with an RS232 interface?

Connectors and Signals RS-232 devices are either DTE or DCE devices. Computer terminals are usually equipped with male connectors with DTE pin functions, while modems have female connectors with DCE pin functions.

How do you test RS232 communication?

By looping the transmit and receive pins, you can test serial cable port communication by checking if the serial ports connections transmit and receive valid information. This is called a loopback test and can be used to test rs232 communication. Use a screwdriver to loop pins for testing.

What pins does the RS232 mating cable terminate at?

Ring Indicator The connector on the PC has male pins, therefore the mating cable needs to terminate in a DB25/F (Female pin) connector. RS232 Pin Assignments (DE9 PC signal set) Pin 1 Received Line Signal Detector (Data Carrier Detect) Pin 2 Received Data Pin 3 Transmit Data Pin 4 Data Terminal Ready Pin 5 Signal Ground Pin 6 Data Set Ready Pin 7

What is a 9 way RS232 connector?

This means that the 9 way connector is able to provide all the required connectivity for most applications. DTE RS232 device is often a PC. By using these configurations it means that an RS232 cable connecting two RS232 devices, i.e. a DTE to a DCE will be wired in a one-to-one configuration, i.e. pin 1 to pin 1, etc.

What is the difference between RS232 and RS232c?

RS232C retains the features of RS232 but uses 25 pins rather than a 9 pin serial pinout. Whether a DB9 serial pinout or a 25 pin connection is used, only three of the pins are required to connect terminal devices. RS232 manages communication flowing between the DTE and DCE using serial pinouts of either the DB9 or DB25 variety.

What is RS232 port pinout and configuration RS232?

COM Port Pinout and Configuration RS232 manages communication flowing between the DTE and DCE using serial pinouts of either the DB9 or DB25 variety. These D-sub connectors can terminate with an RS232 female pinout or DB25 or DB9 male connector pins. Each pin in a 9 or 25 serial connector pinout has its own distinct function.
