What components are found inside an AC alternator?
By Rachel Newton
What components are found inside an AC alternator?

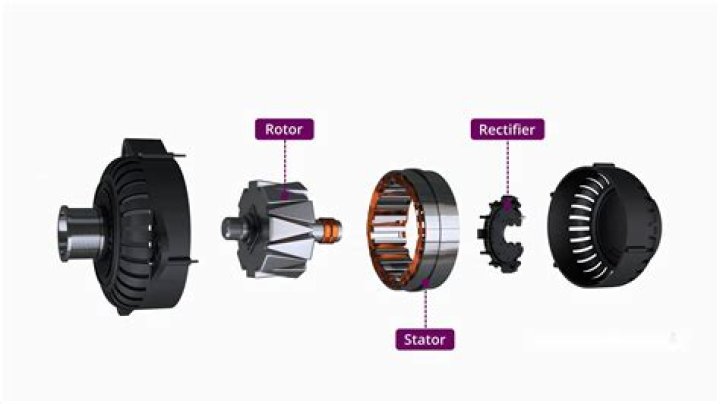

Components of an Alternator
- Rectifier. The rectifier is referred to as mechanical instrument which is mostly used in order to convert the alternating current (DC) which is produced to direct current (DC) during the process of charging.
- Regulator.
- Stator.
- Rotor.
- Slip Rings.
- Pulley.
- Drive End Bearing.
What are the main components of an alternator?
The alternator has three main components and a voltage regulator: The Stator, Rotor, and Diode.
How does a Lucas alternator work?
The rectifier used by Lucas converts the AC current from the alternator to DC current to run the lights, ignition and charge the battery. It consists of a series of diodes mounted to heat sinks. When installing the rectifier it must be open to the cooling air.
How do you test a Lucas alternator?
Testing output on a Lucas ACR alternator Switch on the ignition and test the continuity of the leads one by one, by connecting them with the voltmeter to an earth. You should get a reading of battery voltage for each one; if not, there is a broken connection and the alternator cannot change the battery.
What is alternator ripple?
Rabble-Rousing Ripple Diodes rectify the stator’s AC current into DC. Although this happens, a small AC voltage still appears at the alternator’s output terminal. When properly displayed on a scope screen, this AC voltage has a rippled appearance; consequently, it’s called alternator ripple.
Are Lucas alternators any good?
Been absolutely fine! Lucas are a decent brand! Yes at the time I would have paid a premium for Valeo or Bosch etc but I needed it ASAP and the local ECP had the Lucas on the shelf.
What does B stand for on an alternator?
A key to identifying your alternator terminals
| Terminal | Definition | Notes |
|---|---|---|
| B+ | Battery | Battery positive connection |
| C | Center | Centre point of a Y stator |
| COM | Conputer | Computer Connection |
| D+ | Warning light | Comes from the old ‘Dynamo Positive’ on a generator |
Can auto parts store test alternator?
If the vehicle stalls or dies, the alternator is likely bad. Many auto parts stores will test alternators, starters and batteries for free, though you will have to remove the alternator to have it tested at an auto parts store. Once connected to a terminal, an alternator should test between 12 and 13.5 volts.
How many volts AC does an alternator produce?
An alternator is so named because it produces alternating electrical current. This energy can be converted from one voltage to another using a transformer. Thus, the 12-volt AC output from an alternator can be transformed into 120 volt-AC current.
