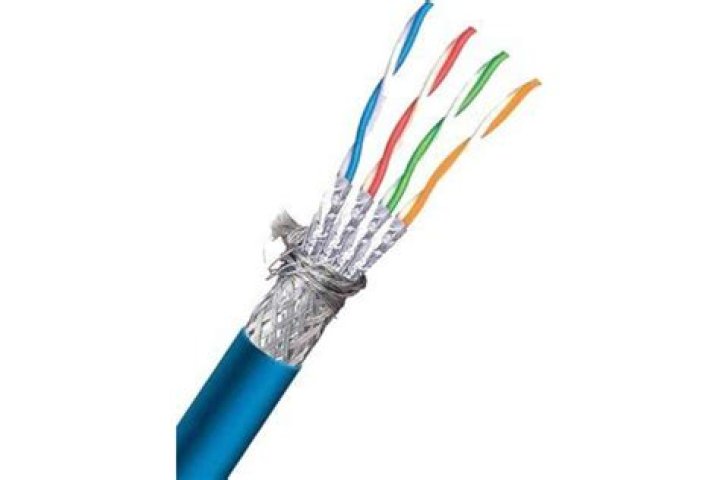

Is there a category 7 cable?

Category 7 cable known as a Cat7 or Cat-7 cable is used to cable the infrastructure of Gigabit Ethernet. It supports high-speed ethernet communication up to 10 Gbps. These are backward compatible with Cat6, Cat5, and Cat5e categories. It provides a 100-meter 4-connector channel with shielded cabling.

What is the meaning of 100BASE TX?

Fast Ethernet
100BASE-TX is the technical name of Fast Ethernet over twisted pair cables. Here, 100 is the maximum throughput, i.e. 100 Mbps, BASE denoted use of baseband transmission, and TX denotes use of twisted pair cables in Fast Ethernet.

Will Cat7 cable work with my router?

Best answer: No. Cat 7 cables aren’t officially supported by any home networking equipment manufacturer so they will be operating as Cat 6 cables due to backwards compatibility.

Is Cat7 standardized?

Cat7 cables are not a common standard, nor one you need concern yourself with. If you need the kind of performance Cat7 offers, Cat6A is perfectly up to the task. It’s a widely supported cable standard and has all of the benefits of Cat7 without the drawbacks.

What is TX cable?

100Base-TX The TX (sometimes referred as “T” only) means it’s a CAT5 UTP straight through cable using two of the four available pairs and supports speeds up to 100 Mb. Maximum length is 100 meters and minimum length between nodes is 2.5 meters.

What is Tx in 100BASE cable?

CAT5 UTP
100Base TX: The term TX is sometimes referred to as T is term for Twisted Pair, which is a type of physical signal carried by the cable. This TX shows that the application is utilizing CAT5 UTP cables, where two pairs of copper wires are being used to support speed of 100 mbit/s.

How far can Cat7 run?

The Cat7 standard supports 10 Gigabit Ethernet. Reliable Ethernet installations will run Category 7 cable to a maximum length of 100 metres. This cable category can transmit data with frequencies of up to 600 MHz. An Augmented Category 7 standard, referred to as Cat7a, delivers a performance of up to 1000 MHz.

What is 10Base Texas?

An Ethernet standard that transmits at 10 Mbps over twisted wire pairs (telephone wire). When used with a hub, 10Base-T shares the 10 Mbps bandwidth between all the ports. When used with a switch, each transmit/receive pair has the full 10 Mbps.

What is the difference between 10Base-T and 100BASE TX?

Both of these terms refer to a networking standard called “Ethernet” which is the most common way of connecting computers together The terms 10Base-T (Ethernet) and 100Base-T (Fast Ethernet) refer to the performance capability of the Network Interface Card (NIC) 10Base-T has a rated transfer speed of 10 Megabits per …

What is the difference between 10BASE-T and Category 7 cables?

The cable standard is suitable for 10BASE -T / 100BASE-TX and 1000BASE -T / 1000BASE-TX (Gigabit Ethernet). The Category 7 cable standard has been created to allow 10 Gigabit Ethernet over 100 m of copper cabling.

What is a 100BASE-TX cable?

The 100Base-TX (sometimes referred to 100Base-T) cable was until 2010 perhaps the most popular cable around since it has actually replaced the older 10Base-T and 10Base-2 (Coaxial).

What is the difference between 100100base-tx and 100BASE-T4?

100Base-TX (sometimes called 100Base-T) uses two of the four available pairs within the UTP cable, whereas the 100Base-T4 uses all four pairs. 100Base-FX also works for speeds up to 100 Mb but uses fiber optic cable instead of UTP.

What is the difference between CAT5 100base-tx/t4 and CAT5 UTP cables?

100Base-TX/T4 works for 100 Mb networks only and uses unshielded twisted pair cable with RJ-45 connectors at each end All CAT5 UTP cables have four pairs of cables (eight wires). 100Base-TX (sometimes called 100Base-T) uses two of the four available pairs within the UTP cable, whereas the 100Base-T4 uses all four pairs.
