Is Modbus TCP same as TCP IP?

Is Modbus TCP same as TCP IP?

Modbus TCP/IP (also Modbus-TCP) is simply the Modbus RTU protocol with a TCP interface that runs on Ethernet. Note that the TCP/IP combination is merely a transport protocol, and does not define what the data means or how the data is to be interpreted (this is the job of the application protocol, Modbus in this case).

What does Modbus TCP mean?

Modbus TCP/IP is a simple Modbus protocol running on Ethernet over a TCP interface. Modbus is an application protocol that assigns the ways of managing and passing data between various layers without being affected by the protocol used by the next immediate layer. Modbus TCP/IP is also known as Modbus-TCP.

Is Modbus TCP real time?

It is often stated that Modbus/TCP isn’t a real-time protocol. It is also “known” that Modbus isn’t a real-time protocol. This despite the fact that the original Modbus protocol is highly deterministic.

Is Modbus TCP Ethernet?

Modbus TCP/IP is simply the Modbus RTU protocol with a TCP interface that runs on Ethernet. With Ethernet, you are combining a versatile, scalable, and worldwide physical network (Ethernet) with a universal networking standard (TCP/IP) and a vendor-neutral data representation, Modbus.

Is Modbus TCP compatible with Ethernet IP?

Ethernet/IP uses the Ethernet architecture to establish connection between automation devices like PLCs,DCS, sensors,industrial machines. So in simple words we can say Modbus TCP/IP message is a Modbus communication encapsulated in an Ethernet TCP/IP wrapper. Modbus TCP/IP works on clients and servers model.

What is the difference between Modbus RTU and Modbus TCP IP?

The most basic difference between Modbus RTU and Modbus TCP/IP is that Modbus TCP/IP runs on the Ethernet physical layer, while Modbus RTU is a serial-level protocol. Modbus TCP/IP also uses a 6-byte header to allow routing. Trying to make the RS485 network work properly may encounter many problems.

How does Modbus TCP IP work?

So in summary, Modbus TCP/IP uses TCP/IP and Ethernet to carry the data of the Modbus message structure between compatible devices. That is, Modbus TCP/IP combines a physical network (Ethernet), with a networking standard (TCP/IP), and a standard method of representing data (Modbus as the application protocol).

What is a Modbus address?

Modbus is a communication protocol developed by Modicon systems. In simple terms, it is a method used for transmitting information over serial lines between electronic devices. In a standard Modbus network, there is one Master and up to 247 Slaves, each with a unique Slave Address from 1 to 247.

Is TCP IP the same as Ethernet IP?

Ethernet is a set of network related technologies (covering the physical layer, data frames, network topology, etc.) defined by the IEEE 802.3 standards. TCP is an acronym which stands for Transmission Control Protocol. If they don’t, or if one of them is corrupt, TCP defines how the missing data will be retransmitted.

Is TCP IP the same as Ethernet?

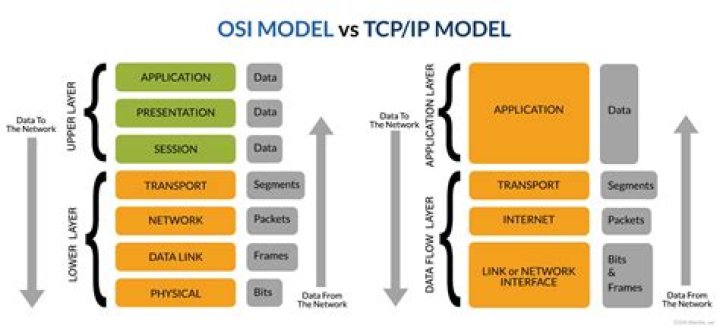

Ethernet is a layer 2 data link protocol that is widely used with the TCP/IP protocol, which resides at layers 3 and 4. To understand network communications, it is essential to learn about the protocol layers (see OSI model).
