How is stack ventilation calculated?

How is stack ventilation calculated?

Q = 60 * Cd * A * sqrt(2 * g * (Hn – Hb) * ((Ti – To) / Ti)) where Q = flow rate in cfm, Cd = 0.65 (for unobstructed openings), A = opening area, square feet, Ti = indoor temp (Rankine), To = outdoor temp (Rankine), Hn = height of “neutral pressure point” (for simple systems, assume 1/2 way between top and bottom …

How does the stack effect work?

Stack effect is air movement caused by thermal differences. Higher-temperature air is less dense than cooler air. As the warmer air rises, it creates a pressure difference, with lower pressure below and higher pressure above. The hot air outside enters the upper portion of the cooler building and creates a draft down.

What is the stack effect in fire?

Sometimes called the chimney effect, the stack effect is a naturally-induced vertical flow of air through a structure. If a fire breaks out on the ground floor, smoke and hot air rise but have nowhere to go. Smoke can collect at the building’s upper floors, hampering evacuation efforts.

What is stack draft?

Flue-gas stack draft The combustion flue gases inside the flue gas stacks are much hotter than the ambient outside air and therefore less dense than the ambient air. That movement or flow of combustion air and flue gas is called “natural draft”, “natural ventilation”, “chimney effect”, or “stack effect”.

What is stack effect pressure?

Stack effect is a pressure difference that causes uncontrolled air flow. It occurs when the temperature differs from outside to inside a building. The direction of air flow depends on whether the building is being heated or cooled.

What is the formula for ventilation?

Minute ventilation (VE) is the total volume of gas entering (or leaving) the lung per minute. It is equal to the tidal volume (TV) multiplied by the respiratory rate (f). Minute ventilation = VE = TV x f At rest, a normal person moves ~450 ml/breath x 10 breath/min = 4500 ml/min.

How do you calculate ventilation size?

Calculation:

1. Area of the Room=Length x Width x Height.
2. Area of the Room=10 x 15 x 10 =1500 Cub. Foot.
3. From the table Air Changing Rate (ACH) for Bathroom = 8 Times/Hour.
4. Size of Ventilation Fan = (Area of Room x ACH ) / 60.
5. Size of Ventilation Fan = (1500 x 8 ) / 60 = 200 CFM.
6. Size of Ventilation Fan = 200 CFM.

What is stack effect in ventilation?

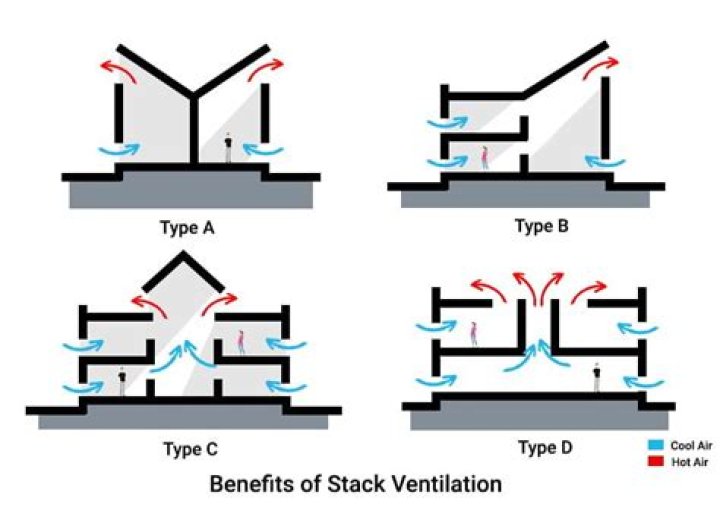

Stack ventilation (also known as stack effect or chimney effect) creates airflow using the natural force that emerges from changes in air pressure, temperature, and density levels between corresponding internal and external environments.

What is stack effect Slideshare?

STACK EFFECT. STACK EFFECT FOR VENTILATION SYSTEM DESIGN OVERVIEW ● Stack effect describes the natural ventilation that occurs due to a difference in indoor-to-outdoor temperature and air density.

What is stack effect in architecture?

Stack effect or chimney effect is the movement of air into and out of buildings, chimneys, flue-gas stacks, or other containers, resulting from air buoyancy. Buoyancy occurs due to a difference in indoor-to-outdoor air density resulting from temperature and moisture differences.
