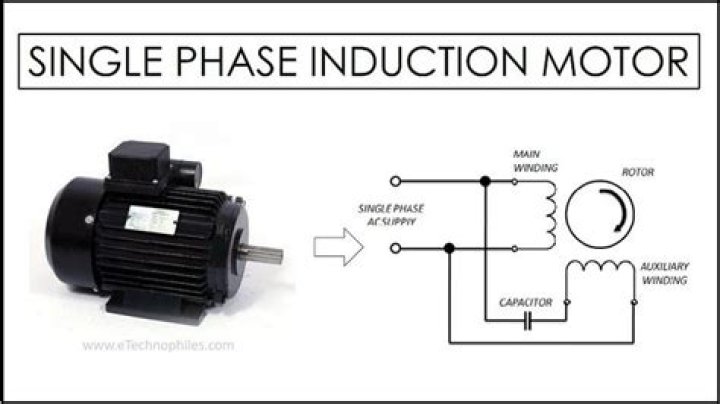

How does single phase AC induction motor work?

Single-Phase Induction Machines. Single phase induction motors generally have a construction similar to that of a three phase motor: an ac windings is placed on the stator, short-circuited conductors are placed in a cylindrical rotor. i.e. the cross product of flux densities will be zero, the motor produces no torque.

Can AC motors be speed controlled?

Yes, you can use voltage to control the speed of an AC motor. NOTE: top speed is ~1500 r/min because the input power is at 50 Hz. For 60 Hz motors, the 1500 r/min would be 1800 r/min.

Can you put a VFD on a single phase motor?

In general single phase motors cannot be run with VFDs. However, it is possible to input single phase to a VFD and output variable voltage to a 3-phase induction motor.

How do you control the speed of a single phase induction motor?

Speed of Single phase motor can be controlled in different ways:

Reducing voltage will reduce the speed within a range. Fan speeds are controlled this way.
Change number of poles by altering winding connections.
Change frequency of supply.

What is V f control of induction motor?

V/F control is an induction motor control method which ensures the output voltage proportional with the frequency, so it maintains a constant motor flux, preventing weak magnetic and magnetic saturation phenomenon from happening.

How does an AC induction motor work?

The magnet fields induced within the rotor are attracted to the magnetic field being produced by the stator, following it as it rotates with each half-cycle of alternating current. This type of motor is called an induction motor because the magnetic field created in the stator induces a magnetic field in the rotor.

How do you control the speed of an induction motor?

Speed Control of Three Phase Induction Motor

V / f control or frequency control.
Changing the number of stator poles.
Controlling supply voltage.
Adding rheostat in the stator circuit.

What are the different methods of speed control of single phase induction motor?

Out of the a number of methods of speed control of an induction such as pole changing, frequency variation, variable rotor resistance, variable stator voltage, constant V/f control, slip recovery method etc., the constant V/f speed control method is the majority generally used.

Can a single phase VFD run a 3 phase motor?

Yes, a VFD can power a three-phase motor with a single-phase input power supply, but phase conversion introduces many considerations that normally don’t factor in to buying a VFD.

Can you run a 3 phase VFD on single phase?

You can almost always use a VFD rated for three phase input with a single phase input power source. When only a three phase input VFD is available, it is acceptable and common practice to de-rate the VFD to work with a single phase input power source.

What are the types of single phase motors?

Based on the starting method, single phase induction motors are basically classified into the following types. Split-phase motor. Capacitor start motor. Permanent capacitor run motor. Capacitor start capacitor run motor. Shaded pole motor.

Does a single phase motor need a starter?

In general, Single phase induction motor requires starter as the 1-phase I.M isn’t self-starting. To get this, the operator will need a starter winding with the help of which the motor can rotate magnetic field.

What is an AC induction motor used for?

AC motor. An industrial type of AC motor with electrical terminal box at the top and output rotating shaft on the left. Such motors are widely used for pumps, blowers, conveyors and other industrial machinery.

How does a single phase motor work?

Single phase motors work on the same principle as 3 phase motors except they are only run off one phase. A single phase sets up an oscillating magnetic field that goes back and forth rather than a rotating magnetic field (see bottom figure). Because of this a true single phase motor has zero starting torque.
