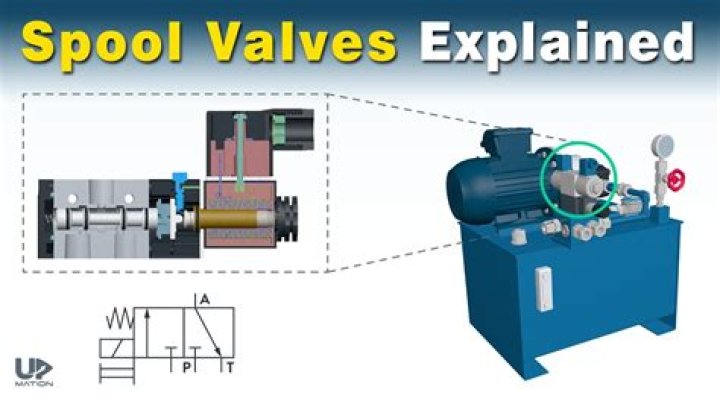

How does a hydraulic spool valve work?
By Mia Lopez
How does a hydraulic spool valve work?
When the valve is actuated, the spool shifts cause the seals to travel along the bore, opening ports to allow airflow. Spool valves regulate the flow of fluid in hydraulic systems. Spool valves would slide backward and forward so that the fluid flow can be either in one direction or another around a circuit of pipes.
What are two types of spool valves?
Spool is of two types namely sliding and rotary. Sliding spool is cylindrical in cross section, and the lands and grooves are also cylindrical. Rotary valves have sphere-like lands and grooves in the form of holes drilled through them.
How are spool valves controlled?
Essentially a spool valve is a cylinder inside a sealed outer case. Whatever the method is chosen to control the valve, all that we are doing is simply pushing the spool to move within the housing, and by doing this we are allowing or blocking the path between the ports.
How do you adjust a spool valve?
To adjust the spool valve, loosen the valve-locking nut on the side. Removing the locking nut gives you access to the adjustment screw. Turn the screw clockwise to raise the pressure, and twist it counter-clockwise to lower the pressure.
What’s a spool valve?
A spool is a cylindrical valve element that opens and closes ports when moved axially within the valve bore. Most spool valves use elastomers to seal between flow paths.
What is a spool valve and how does it work?
Spool valves regulate the flow of fluid in hydraulic systems. Spool valves would slide backward and forward so that the fluid flow can be either in one direction or another around a circuit of pipes. Spool valves have two basic components, a cylindrical barrel in which slides a plunger or spool.
What is a spool type hydraulic valve used to control?
Spool valves can be used in both hydraulics (where the oil is the energy source) or Pneumatics (where the air is the energy source) and their job is to control the flow direction of the energy source by combining or switching the paths through which the oil or air can travel.
How do valves function in hydraulic systems?
In a hydraulic system, valves have multiple functions. They direct the flow of fluid through the system, control flow of fluid, and regulates the pressure of fluids. What the valve does to perform all these functions is, just opening and closing.
What is the operation process of a hydraulic solenoid valve?
A hydraulic solenoid valve is a solenoid controlled directional valve used in a hydraulic system for opening, closing or changing the direction of flow of the liquid . The valve operates with a solenoid, which is an electric coil wound around a ferromagnetic core at its center. The valve consists of various chambers also called ports.
