How does a 2 wire RTD work?
By Rachel Newton
How does a 2 wire RTD work?
An RTD is simply a wire resistor, which, by its nature, only has two leads. Therefore, as the temperature increases, the resistance increases. A high-quality RTD typically uses a platinum wire, which has a linear, predictable resistance change with changing temperature.
What is a dual element RTD?
Overview. Dual element stator winding RTDs provide extra protection for motors and generators. The second element can be a back up in case of damage, or use one element for input to a temperature display at the machine and the other for control room monitoring.
What is the difference between 2 wire and 3 wire RTD?
2-wire RTD’s are mostly used with short lead wires or where close accuracy is not required. third wire provides a method for removing the average lead wire resistance from the sensor measurement. This true bridge method will compensate for any differences in lead wire resistances.
How do I connect RTD to PLC?
Two Options are there to connect 4 wire RTD to PLC. First option is to use RTD-mA converter. RTD-mA converter (Transmitter) is usually a better option that wiring RTD directly to the PLC card.
Do RTDs need special wire?
RTDs are special resistors whose resistance value changes with temperature in a known way. RTDs are connected to the temperature recording or process control instrumentation using ordinary copper instrumentation cable. Thermocouple wire is not required to connect an RTD.

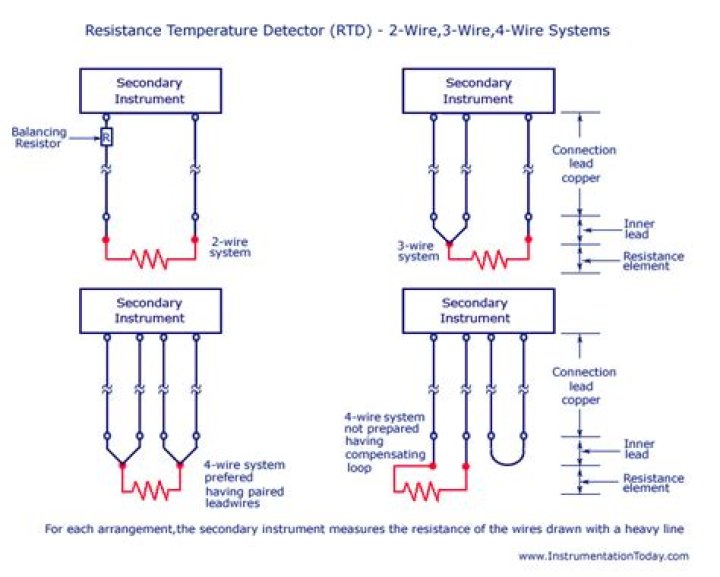

What is the difference between 2 3 4 wire RTD?
2-wire RTD’s are mostly used with short lead wires or where close accuracy is not required. third wire provides a method for removing the average lead wire resistance from the sensor measurement. The 4-wire circuit is a true 4-wire bridge, which works by using wires 1 & 4 to power the circuit and wires 2 & 3 to read.
Are RTDs grounded?
RTDs cannot be grounded. For this reason, they have a slower response time than grounded thermocouples.
