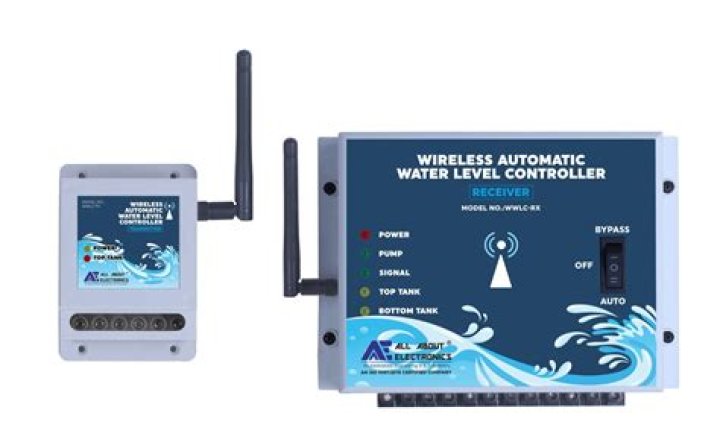

How do you make an automatic water level controller?
By Marcus Reynolds
How do you make an automatic water level controller?
To make this circuit you will need
- BC 547 Transistor X 3 = 9 INR.
- 220 K Ohm & 5.4 K Ohm resistors = 1.
- 1N4007 Diode = 1.
- 12V relay = 12.
- One, 3-pin PCD connector & two, 2-Pin PCB connector = 25.
- Wires = 5.
- PCB = 12.
How does a water sensor work Arduino?
This sensor works by having a series of exposed traces connected to ground and interlaced between the grounded traces are the sens traces. The sensor traces have a weak pull-up resistor of 1 MΩ. The resistor will pull the sensor trace value high until a drop of water shorts the sensor trace to the grounded trace.
What is water sensor?
A water sensor is a device used in the detection of the water level for various applications. Water sensors can come in several variations that include ultrasonic sensors, pressure transducers, bubblers, and float sensors.
How many types of level sensors are there explain?
There are two main classifications for level sensors: point level sensors and continuous level sensors. Point level sensors are designed to indicate whether a liquid has reached a specific point in a container. Continuous level sensors, on the other hand, are used to render precise liquid level measurements.
How do I make an Arduino water level indicator?
So lets get started….
- Step 1: Components Required.
- Step 2: Assemble LED on Breadboard.
- Step 3: Make Connections With Arduino and LED.
- Step 4: Connect the Water Sensor With Arduino.
- Step 5: Connect Buzzer.
- Step 6: Upload Sketch.
- Step 7: Done!!
- 1 Person Made This Project!
Can ultrasonic sensor detect water level?
With ultrasonic sensors, we can find the water depth calculation by finding the distance between the transceiver and the surface of the water. The sensor will transmit a short ultrasonic pulse, and we can measure the travel time of that pulse (the echo) to the liquid and back.
