How do you layout a breaker panel?
By Isabella Harris

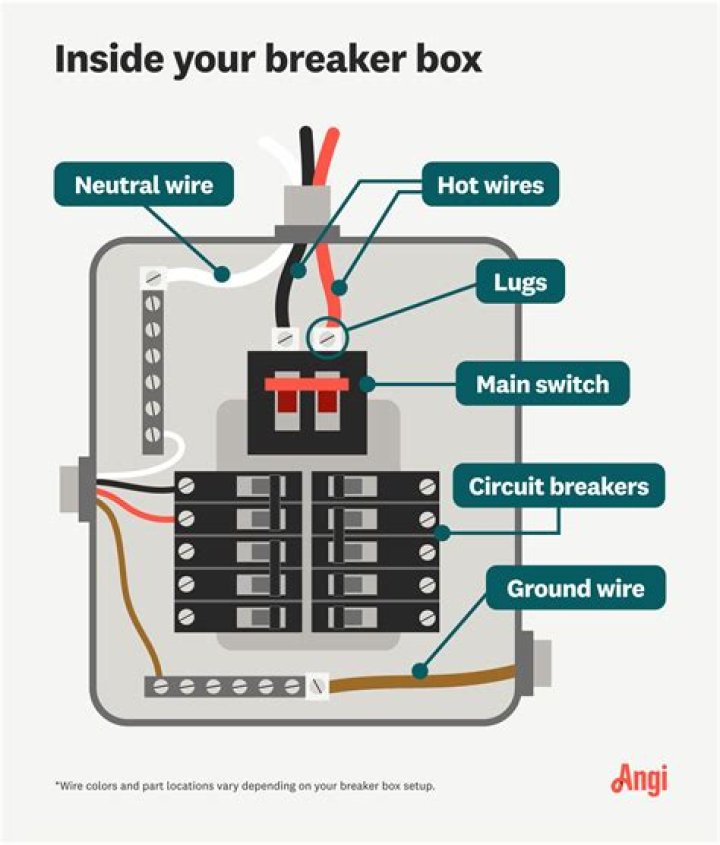

How do you layout a breaker panel?
You only have one rule to follow when deciding how to lay out a breaker panel–you must connect the cables that enter on the left side of the panel to the breakers on the left side, and connect the cables that enter on the right side of the panel to the breakers on the right side.
How do you label a breaker box?
The Basic Procedure for Circuit Breaker Box Labeling
- Step 1 – Number Every Circuit Breaker. Assign a number to each circuit breaker inside the breaker panel.
- Step 2 – Locate all the Devices on the Circuit Breaker Box.
- Step 3 – List down the Results.
- Step 4 – Test all the Appliance Circuits.
- Step 5 – Make an Index.
How much space should be in front of a breaker box?
3 feet
The space around electrical equipment should always be clear to be on the safe side. There should be at least 3 feet of space in front of equipment with a 30 inch width as well as 612 feet of headroom space.
Does it matter where you put breakers in a breaker box?
There really isn’t a code issue on where to install various breakers, but most of what you said is a preference. Best practice is to install the highest rated breakers as close to the main as possible. Other than that, its mostly a preference.
Do breaker panels have to be labeled?
The identification must be included in a circuit directory that is located on the face or inside of the panel door. Even spare, unused circuit breakers must be identified. And don’t create personal labels such as “Mary’s Bedroom” that will have no meaning to the next family that owns the home.
What does WP mean on a breaker box?
Weatherproof
Electrical Abbreviations
| # | Number |
|---|---|
| VT | Voltage Transformer |
| W | Watt or Wire |
| WH | Water Heater |
| WP | Weatherproof or Waterproof |
How are breaker boxes numbered?
For the sake of convenience, the breakers are usually numbered and mapped, with the odd-numbered breakers running down the left side of the panel, and the even-numbered circuits along the right.
How far does electrical panel need to be from water?
Wiring concerns and codes are more focused on the distance between outlets and similar concerns. However, when it comes to the electrical panel, the dedicated panel board space that extends from the floor to 6 feet above the panel board, should remain free of all piping and similar materials.
Can I put a fridge in front of my electrical panel?
Crowding a Service Panel Here’s a good rule of thumb: If you can’t park a refrigerator in front of the panel, you don’t have enough working space. These clearances are designed to protect the person working on the panel. It’s difficult to work safely when your arms are pinned to your sides.
Do circuit breakers need to be the same brand as the panel?
Brand: Always install the correct brand of breakers in your breaker panel. While some breakers are interchangeable, many are not, even if they look the same. Replacing one brand of breaker with another can be dangerous, may void your breaker or panel warranty, and may lead to a failed electrical inspection.
