How do lissajous curves work?

How do lissajous curves work?

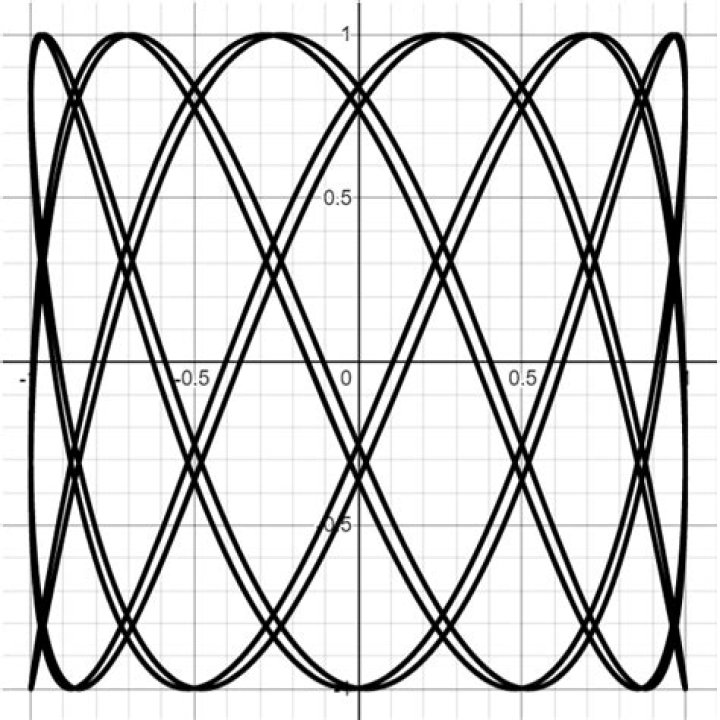

Lissajous used a narrow stream of sand pouring from the base of a compound pendulum to produce the curves. If the frequency and phase angle of the two curves are identical, the resultant is a straight line lying at 45° (and 225°) to the coordinate axes.

What are Lissajous figures explain?

Definition of Lissajous figure : any of an infinite variety of curves formed by combining two mutually perpendicular simple harmonic motions, commonly exhibited by the oscilloscope, and used in studying frequency, amplitude, and phase relations of harmonic variables.

How can you produce an ellipse in a Lissajous figure?

Using an oscilloscope that can plot one signal against another (as opposed to one signal against time) to plot the output of an LTI system against the input to the LTI system produces an ellipse that is a Lissajous figure for the special case of a = b.

Where do Lissajous figure appear?

A Lissajous figure is displayed on the screen when sinusoidal signals are applied to both horizontal & vertical deflection plates of CRO. Hence, apply the sinusoidal signals, which have same amplitude and frequency to both horizontal and vertical deflection plates of CRO.

What are the uses of Lissajous figures?

Lissajous Figures Uses: The lissajou figures are used to determine the unknown frequency by comparing it with the known frequency. Verifying audio oscillator with a known-frequency signal. Monitoring audio amplifiers and feedback networks for phase shift.

Why are Lissajous figures important?

The Lissajous figure is of high importance in physics in order to study the sinusoidal waves. The Lissajous figures are mainly used in analogue electronics to analyse the intersection of two or more sinusoidal wave constructing loops which is also known as knots in general.

What are the steps to generate Lissajous pattern?

How is a Lissajous pattern created?

1. By drawing two square waves on different axis.
2. By drawing square wave and sine wave on the same axis.
3. By drawing two sine waves which are at right angles to each other.
4. By drawing two sine waves on the same axis.

How do you find the Lissajous pattern?

To determine the ratio of frequencies of signal by using the Lissajous pattern, simply draw arbitrary horizontal and vertical line on lissajous pattern intersecting the Lissajous pattern. Now count the number of horizontal and vertical tangencies by Lissajous pattern with these horizontal and vertical line.

Which of the following measurements can be made using Lissajous figures?

Lissajous figures are used for the measurement of frequency and phase difference.

How do you read Lissajous figures?

The Lissajous pattern indicates the phase difference by the shape of the X-Y plot. A straight line indicates a 0º or 180º phase difference. The angle of the line depends on the difference in amplitude between the two signals, a line at 45º to the horizontal means the amplitudes are equal.

What is a Lissajous figure Mcq?

Lissajous figures are used for the measurement of frequency and phase difference. When horizontal deflection plates and vertical deflection plates of CRO (Cathode Ray Oscilloscope) are connected to two sinusoidal voltages, the patterns appear at CRO screen are called the Lissajous pattern.
