Can SolidWorks open Edrawing files?

Can SolidWorks open Edrawing files?

eDrawings also supports display of SOLIDWORKS Simulation and SOLIDWORKS SimulationXpress data, when available, in eDrawings part or assembly files. For more information, see SOLIDWORKS Simulation Data. Pro/ENGINEER drawings cannot be imported.

How do I use Edrawing in SolidWorks?

To create eDrawings files using SOLIDWORKS Save As: In a SOLIDWORKS document, click File > Save As….Creating eDrawings Files Using SOLIDWORKS Save As

1. Part document (*. sldprt). Save as eDrawings (*. eprt)
2. Assembly document (*. sldasm). Save as eDrawings (*. easm)
3. Drawing document (*. slddrw). Save as eDrawings (*. edrw)

How do you convert Edrawing to SolidWorks?

How to Convert EASM to SLDASM…

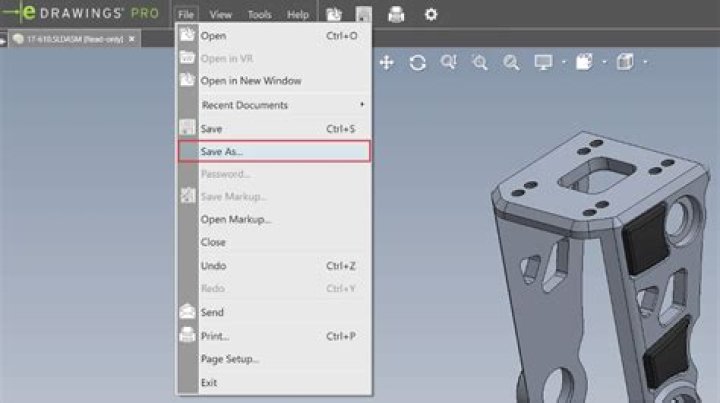

1. “Step. Select “File” in the menu bar of your eDrawings program.
2. Step. Select “Save As.” Select the “SolidWorks File (. sldasm)” option in the text bar next to “Save as Type.”
3. Step. Select “Save” in the “Save As” menu to save the newly converted file to your computer.” AAAAARRRRGGGHHH!

What is Edrawing in SOLIDWORKS?

SOLIDWORKS eDrawings is the premiere toolset for 3D CAD markup and viewing. The standalone SOLIDWORKS eDrawings Viewer enables anyone to view, print, and review eDrawings. It is available for Windows, Mac, and mobile devices for true cross-platform design collaboration and communication.

What is Edrawing in Solidworks?

Is eDrawings same as SolidWorks?

eDrawings Publisher enables non-SOLIDWORKS® users to share eDrawings files from their native CAD system to benefit from easy design communication across multiple CAD environments with the click of a mouse button. In SOLIDWORKS Simulation, all plots are output to a single eDrawings file for viewing simulation results.

How do I create drawing in SolidWorks?

Creating a Drawing. In the New SolidWorks Document dialog box, select Drawing , then click OK. Select options for Sheet Format/Size, then click OK. In the Model View PropertyManager, select a model from Open documents or browse to a part or assembly file. Specify options in the PropertyManager, then place the view in the graphics area.

Is there free version of SolidWorks?

On Shape is a good choice quit similar to solidworks. In the free version if you want to save your files on cloud they are public. But you can avoid it if you download your files and then reupload them when you want to work again.

How to open SLDPRT file?

– Right click on the unknown SLDPRT file you want to open – Select “Open with” from the menu – Click “Choose another application” – Click “More applications” – Click “Find more applications on this PC” and indicate the installation location of the appropriate program – Finally, select the “Always use the selected program to open SLDPRT files” option and confirm the whole operation.

What is a SolidWorks drawing?

SolidWorks eDrawings. As a best practice, distribute drawings and assemblies files in eDrawings format, which always requires updates when referenced parts are modified. If this is not possible, redistribute the updated SolidWorks parent drawings and assemblies each time you modify the referenced parts.
