Are class AB amplifiers good?
By Rachel Newton
Are class AB amplifiers good?
Class A design is the least efficient but has the highest sound fidelity. Class B design is a little more efficient, but full of distortion. Class AB design offers power efficiency and good sound. Class D design has the highest efficiency but isn’t quite as high-fidelity.
How does class AB amplifier work?
Class B Amplifier Operation This allows for one transistor to amplify the signal over one half of the input waveform, while the other transistor amplifies the other half. These two amplified halves are then combined together at the load to produce one full waveform cycle.
What are class AB amplifiers?

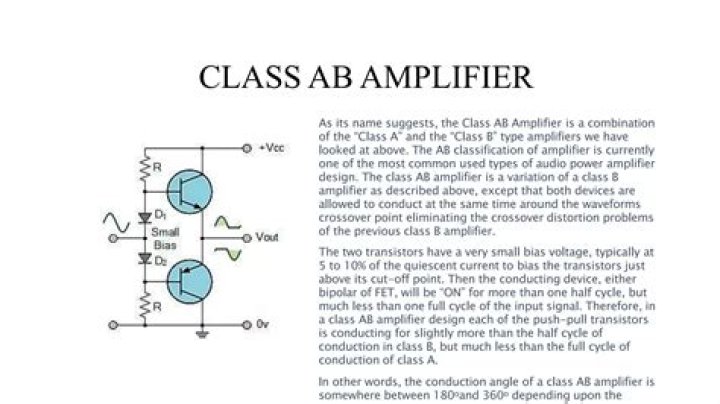

Class AB amplifiers combine Class A and Class B to achieve an amplifier with more efficiency than Class A but with lower distortion than class B. This is achieved by biasing both transistors so they conduct when the signal is close to zero (the point where class B amplifiers introduce non-linearities).
What is the difference between Class B and Class AB amplifier?
Amplifier Classes (Short Summary) Class B: Push-pull; each device conducts over half the input signal swing. Class AB: Push-pull; each device conducts over slightly more than half the input signal swing to simplify crossover.
What is the difference between class A and class AB amplifiers?
The difference between a Class A and a Class AB amplifier is simply the point at which the transistors are biased. This means that in the case of a Class A amplifier, the output is a faithful reproduction of the input signal whereas, in the case of Class AB some distortion is inevitable.
What is a class AB amplifier?
What does class AB mean?
Why is class AB amplifier better than Class B amplifier?
Class AB sacrifices some efficiency over class B in favor of linearity, thus is less efficient (below 78.5% for full-amplitude sine waves in transistor amplifiers, typically; much less is common in class-AB vacuum-tube amplifiers). It is typically much more efficient than class A.
The Class AB amplifier combines the strengths of Class A and Class B amplifiers. A Class AB amplifier has the good signal reproduction of a Class A amplifier and the complementary pair of transistors of a Class B amplifier which results in a better efficiency.
What are the disadvantages of Class B amplifiers?
Here is the list of disadvantages of a Class B amplifier. Sound distortion is the biggest problem of the Class B amp. Increased size and cost also because of coupling transistors. Not a good performance in case of heavy loads. When we talk about Class AB Amplifiers, many people ask, what does AB mean?
What is the formula for the efficiency of an AB amplifier?
The formula of the efficiency (η) for class AB amplifiers is similar to the class B configuration and is given by the following equation : Where V AC represents the AC fluctuation of the output signal.
What is the difference between Class A class AB and Class B?
A Class AB amplifier has the good signal reproduction of a Class A amplifier and the complementary pair of transistors of a Class B amplifier which results in a better efficiency. To eliminate the crossover distortion found in a Class B amplifier, we bias the amplifier to have the complementary pair of transistors conduct at the same time.
